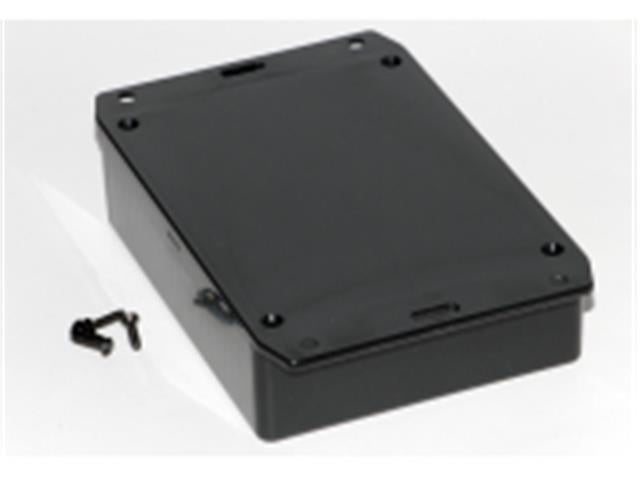

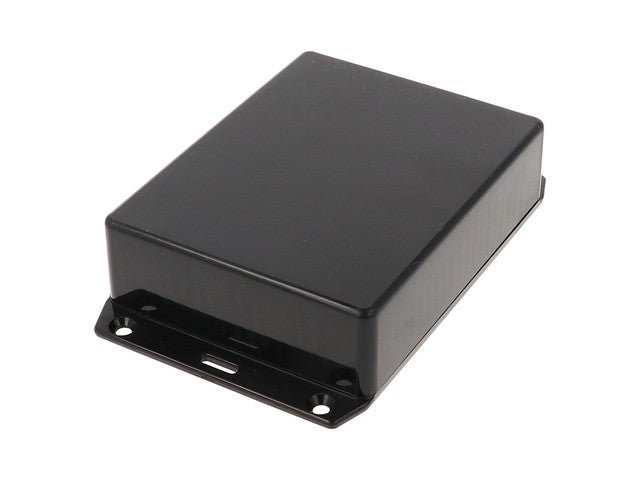

Polystyrene Enclos Flange Lid 120X94X34

Polystyrene Enclosure Flange Lid

Feature(s)

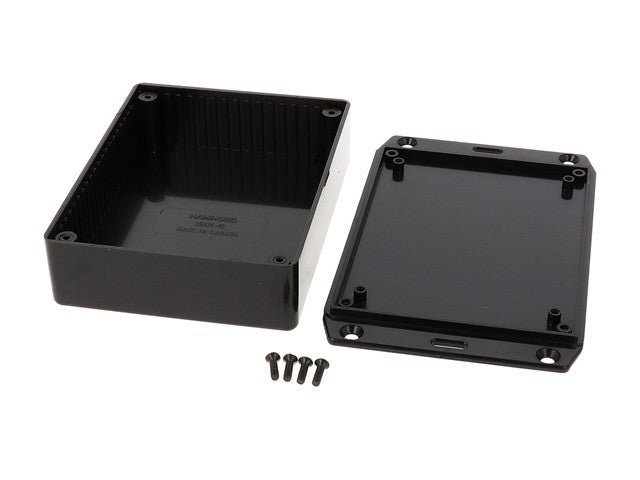

Ideally suited for vertical mounting of printed circuit boards (internal side walls include molded in card guides - see photo to the right).
Integral card guides accept 1.5 mm (0.062”) P.C. cards.
Lap joint construction provides protection against access of dust and splashing water.
Designed to meet IP54.
Standard versions are molded from easy to machine flame retardant ABS plastic which carries a UL flammability rating of 94V-0.
Economy versions are molded from general purpose (not flame-retardant) plastic.
On standard versions the lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
Economy versions are assembled with self tapping screws into fully plastic posts.
Black enclosures include black screws, while all others include standard nickel finish screws.
Replacement screws available in packs of 100; 1591MS100 (nickel plated) or 1591MS100BK (black)
