Product Details

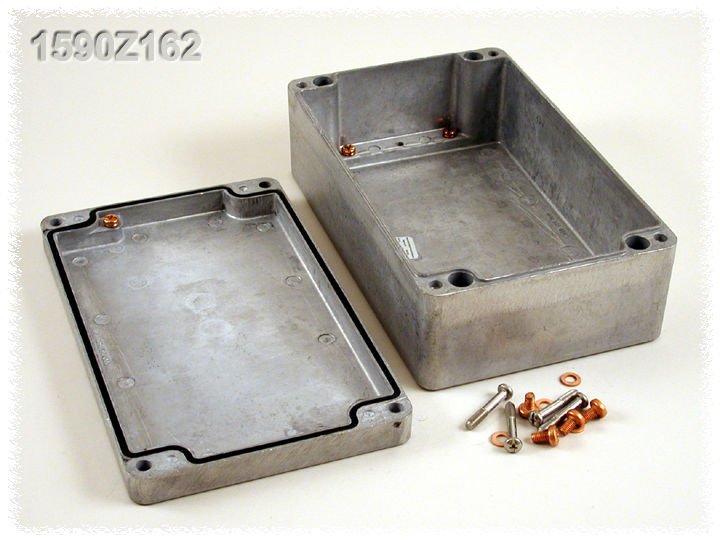

Diecast Aluminium Unpainted Enclosure 260 x 160 x 89.75 mm (With Lid) Watertight IP66
Features
- Rugged, diecast aluminum alloy (tough yet easy to machine), electronic instrument enclosure
- Two piece “tongue & groove” construction with a replaceable one-piece silicone rubber gasket provides protection against access of dust and water. Gasket supplied loose inside the enclosure (not pre-installed)
- Ideal for repetitive opening and closing
- Four recessed stainless steel machine screws secure lid into tapped holes
- Easy to wall mount using “through box - blind hole” construction, outside of gasket protection
- Lid screws are self captivating (lid holes are threaded with the first installation of lid screws)
- North American Mark of Safety - cUL & UL listed. Certified to Type 4, 4X, 6, 6P
- Painted versions are painted inside and out with a tough powder paint. Choice of textured black or smooth gray (RAL 7001)
- For non-metallic (glass reinforced polyester) versions of these enclosures
Specifications
| Product Type | Diecast Box Enclosure |
|---|---|
| Series | 1590Z |
| Body Material | Diecast Aluminium |
| External Dimensions | 260 x 160 x 89.75 mm (With Lid) |
| External Length | 260 mm |
| External Width | 160 mm |
| External Height | 89.75 mm (With Lid) |
| Internal Dimensions | 248.83 x 148.95 x 82.3 mm |
| Internal Length | 248.83 mm |
| Internal Width | 148.95 mm |
| Internal Height | 82.3 mm |
| Colour | Natural |
| IP Rating | IP68 |
| Lid Colour | Natural |
| Protection Features | Water-Tight |
