Product Details

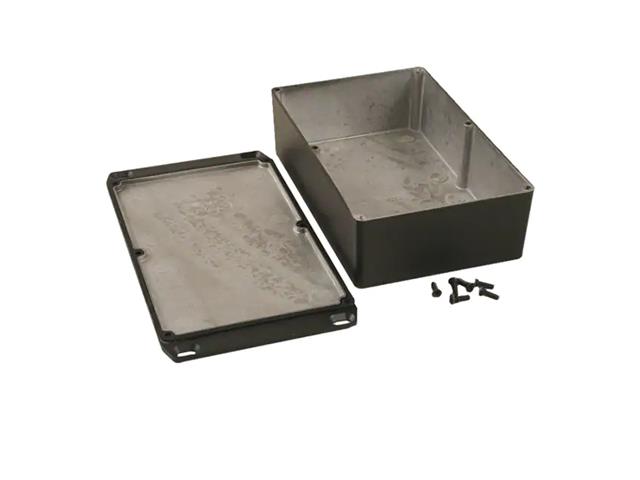

Light Duty Watertight Flanged Lid Enclosure • Diecast Aluminium • 188 mm x 119 mm x 56 mm • Black
Light Duty Watertight Flanged Lid Enclosure
Feature(s)
- Rugged, Diecast alluminium alloy (tough yet easy to machine), electronic instrument enclosure.
- Lap joint construction with a factory poured silicone rubber gasket around the perimeter of the lid provides protection against access of dust and water.
- Silicone rubber gasket remains flexible from -62 to +232ºC (-80 to +450 ºF).
- Flanged lid allows for easy mounting to walls or shelves & provides high security (as lid screws are hidden against wall or shelf).
- These enclosures share the same body and features as our regular type 1590 enclosure except the lid is extended and four countersunk holes are cast into the flanges.
- Four stainless steel machine screws secure lid - into factory tapped holes.
- Screws use neoprene "O" rings (included).
- Designed to meet IP65.
- Low side wall draft angle (2 degrees or less) for easy P.C. board mounting.
Specifications
| Size L x W x H | 7.39 in x 4.7 in x 2.2 in (188 mm x 119 mm x 56 mm) |
|---|---|
| Shipping Weight | 1.23 lbs (0.56 kg) |
| Packaging Type | shrink wrap |
| Material | Aluminum (Die-Cast Alloy) |
| Color | Black |
| IP Rating | IP65 |
| Product Category | Enclosures |
| Type | Die-cast box, water-tight |
| Max. P.C. Board Length (mm) | 109.61 |
| Max. P.C. Board Width (mm) | 177.86 |
Downloads
Additional Information
| Device | Enclosure |
| Type | Light Duty | Watertight | Flanged Lid |
