Product Details

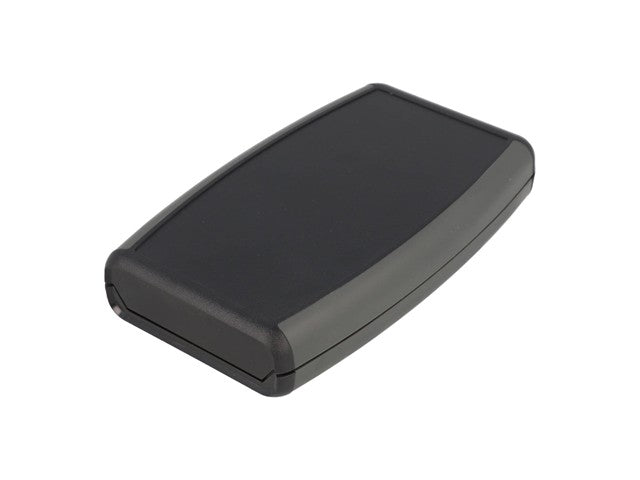

ABS Enclosure 147 x 89 x 25mm Soft Sided Watertight IP65 Black Top Grey Sides
ABS Enclosure Soft Sided Watertight IP65 Black
Feature(s)
- Ergonomically designed for hand-held comfort.
- Designed to meet IP65.
- Comes with pre-formed and pre-installed silicone gasket.Â
- Three sizes and two colors to choose from.
- Molded in flame retardant ABS plastic (FRABS) rated UL94 V-0 with a grey TPE overmold serving as a soft grip.
- Top cover is recessed for a membrane display or keypad.
- PC board standoffs are molded into both the top and bottom of the enclosure. Standoff screws (M2) not included. See 1553WTS100 for 100 pack of PCB screws.
- Front panel is integrated with top half of the enclosure.Â

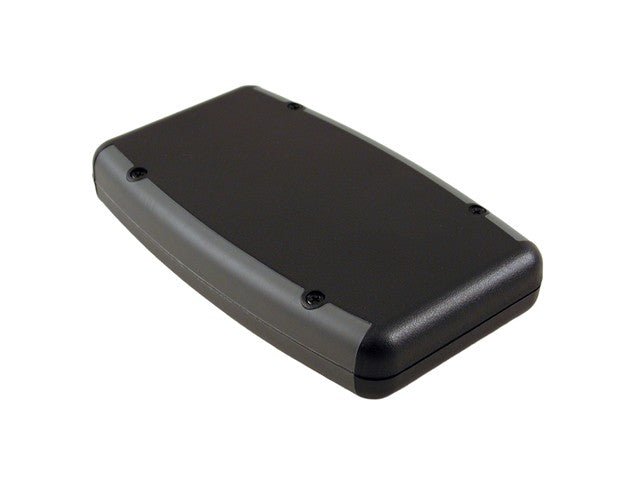

- Enclosure is secured with black stainless steel machine screws threaded into brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
- Replacement assembly screws for sizes "B" and "D", part number SC1553WB100BK (100-pack, black stainless steel).
- Replacement assembly screws for size "C", part number SC1553WC100BK (100-pack, black stainless steel).
Specifications
| Size L x W x H | 5.8 in x 3.54 in x 0.98 in (147 mm x 90 mm x 25 mm) |
|---|---|
| Shipping Weight | 0.26 lbs (0.12 kg) |
| Packaging Type | shrink wrap |
| Material | ABS Plastic |
| Color | Black |
| Flame Rating | UL94 V-0 |
| IP Rating | IP65 |
| Product Category | Enclosures |
| Type | Hand-held, water-tight |
| Max. P.C. Board Length (mm) | 67 |
| Max. P.C. Board Width (mm) | 137 |
Downloads
Additional Information
| Device | Enclosure |
| Type | ABS | Soft Sided | Watertight | IP65 | Black |
