Product Details

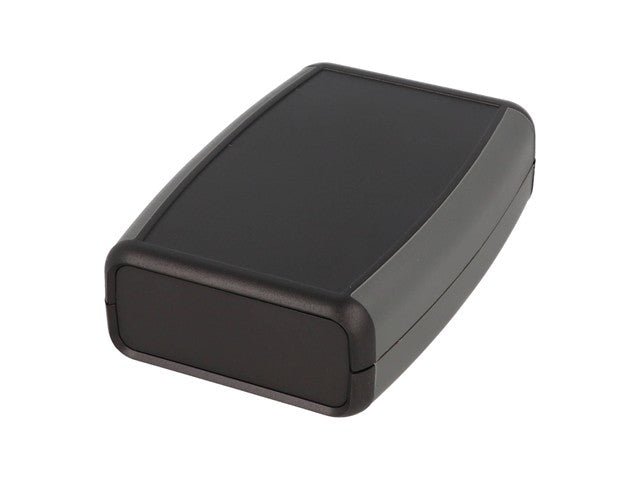

117x79x33mm ABS Plastic Enclosure Black with Soft Side
ABS Plastic Enclosure
Feature(s)
- Ergonomically designed for hand-held comfort.
- Choice of five sizes - in two colors.
- Choice of two versions in the three larger sizes (ie...with or without battery door & compartment)
- Four additional color combinations have also been added - to the two larger sizes - link here for info...
- Molded in general purpose ABS plastic with a grey overmold, soft plastic grip.
- Top cover is recessed for membrane display or keypad.

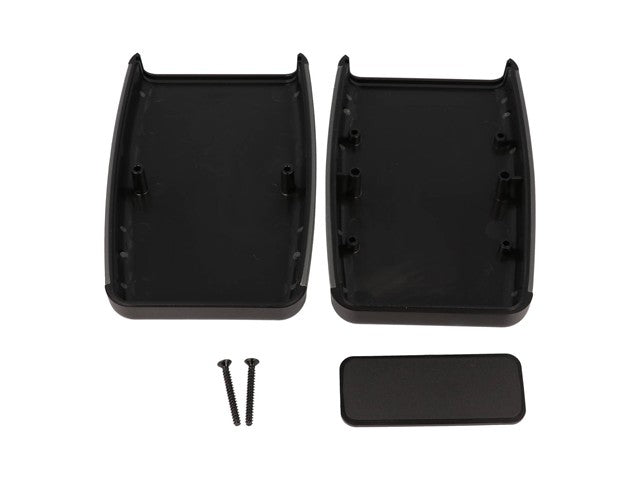

- P.C. board standoffs are molded into case (see drawings or photos for more details).
- Includes removable front panel (for easy modifications) and assembly hardware (except for smalles 1553A units).
- Battery door & compartment version includes 4 battery clips (for 2 - AA batteries) and a 9 volt (PP3) battery clip.
- Choice of two enclosure colors, light grey (RAL 7035) or black (RAL 9011) - soft side "grip" plastic color is grey (RAL 7012)
Specifications
| Size L x W x H | 4.62 in x 3.11 in x 1.3 in (117 mm x 79 mm x 33 mm) |
|---|---|
| Shipping Weight | 0.15 lbs (0.07 kg) |
| Packaging Type | shrink wrap |
| Material | ABS Plastic |
| Color | Black |
| Flame Rating | UL94 HB |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Hand-held, soft sided |
| Max. P.C. Board Length (mm) | 109 |
| Max. P.C. Board Width (mm) | 69 |
Downloads
Additional Information
| Device | Enclosure |
| Type | Plastic |
