Product Details

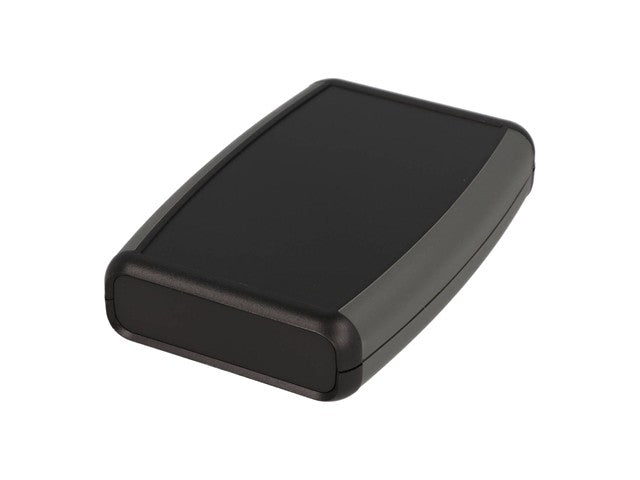

ABS Enclosure with Battery Door 117 x 79 x 24mm Soft Sided
ABS Enclosure with Battery Door Soft Sided
Feature(s)
- Ergonomically designed for handheld comfort.
- All sizes except 1553AA and 1553A available with or without battery compartment.
- Molded in general purpose ABS plastic with a soft plastic overmold for comfortable grip.
- Top cover is recessed for membrane display or keypad.
- PC board standoffs are molded into case.
- Includes removable front panel (except 1553AA and 1553A sizes) and assembly hardware.

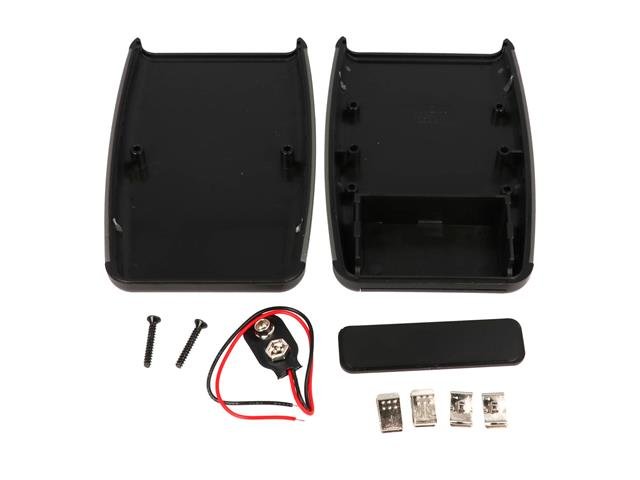

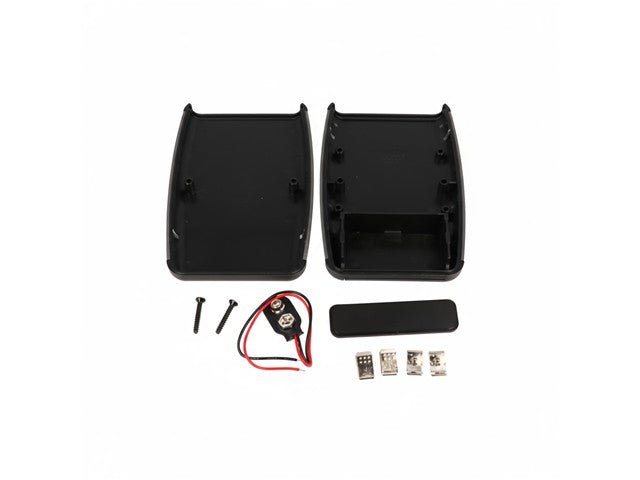

- Battery door and compartment version includes 4x battery clips (for 2x AA batteries) and 1x 9 volt (PP3) battery clip.
- Gray 1553 series enclosures include nickel plated screws. All other colors use black screws. Refer to product datasheets for correct part numbers.
- PC Board mounting screws are not included. Order part number 1593ATS50 (pack of 50) or 1593ATS100 (pack of 100).
- Versions without a battery door are designed to meet IP54 ratings.
Specifications
| Size L x W x H | 4.62 in x 3.11 in x 0.95 in (117 mm x 79 mm x 24 mm) |
|---|---|
| Shipping Weight | 0.17 lbs (0.08 kg) |
| Packaging Type | shrink wrap |
| Material | ABS Plastic |
| Color | Black |
| Flame Rating | UL94 HB |
| Product Category | Enclosures |
| Type | Hand-held, soft sided, battery |
| Max. P.C. Board Length (mm) | 67 |
| Max. P.C. Board Width (mm) | 78.18 |
Downloads
Additional Information
| Device | Enclosure |
| Type | ABS | Battery Door | Soft Sided |
