Product Details

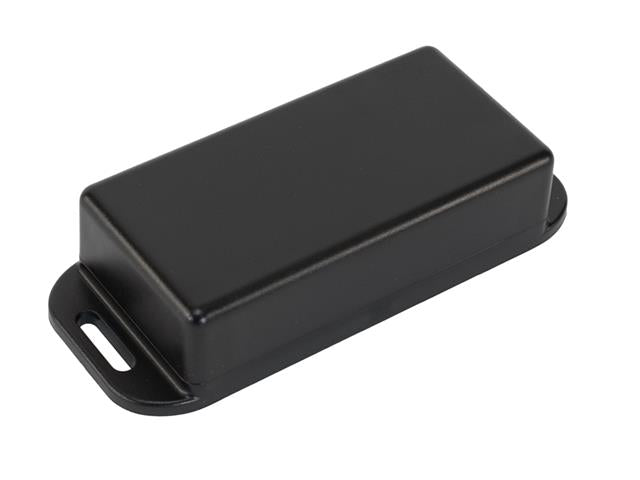

ABS Enclosure Polycarbonate Watertight 80x40x22mm Black Flanged IP68
Polycarbonate Watertight ABS Enclosure
Feature(s)
- Ideally suited for mounting small printed circuit boards.
- Molded from robust polycarbonate
- Suitable for outdoor use
- Polycarbonate has a flame rating of UL94 V-0
- Satin texture finish.
- Complete with lid and (4) plastite #4 self tapping screws.
- Available with or without integrated wall-mounting flanges.
- P.C. board standoffs molded into interior for easy installation.
- Includes replaceable silicone gasket to protect against ingress of water or dust.
- Designed to meet IP68.
- For general purpose (not water-tight) miniature enclosures
Specifications
| Size L x W x H | 1.57 in x 3.15 in x 0.87 in (40 mm x 80 mm x 22 mm) |
|---|---|
| Shipping Weight | 0.08 lbs (0.04 kg) |
| Packaging Type | shrink wrap |
| Material | Polycarbonate |
| Color | Black |
| Flame Rating | UL94V-0 |
| IP Rating | IP68 |
| Product Category | Enclosures |
| Type | Miniature flanged watertight |
| Max. P.C. Board Length (mm) | 74.5 |
| Max. P.C. Board Width (mm) | 34.5 |
Additional Information
| Device | Enclosure |
| Type | Polycarbonate | Watertight | ABS |
