Product Details

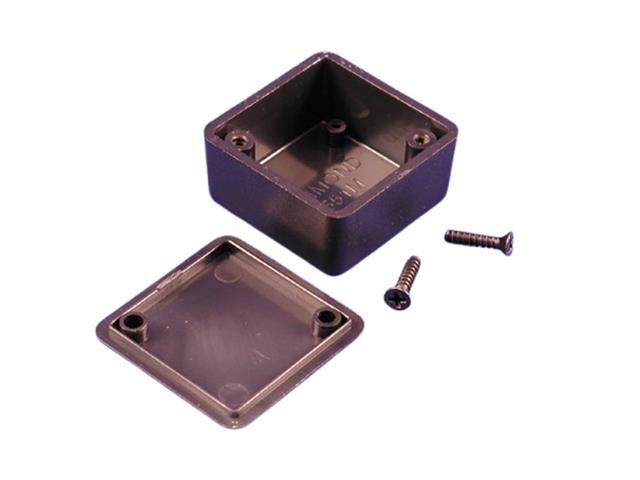

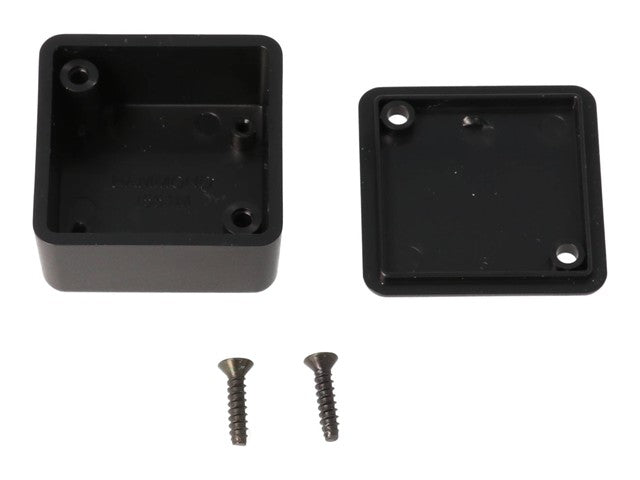

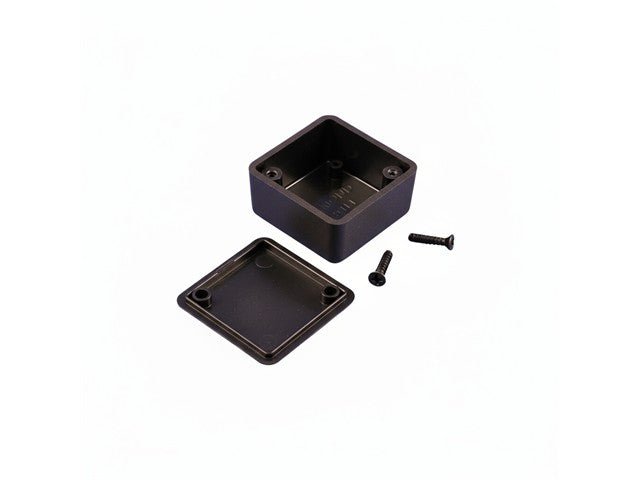

General Purpose IP54 Black ABS Plastic Enclosure in 35 mm x 35 mm x 20 mm size
ABS Plastic Enclosure
Feature(s)
- Ideally suited for mounting small printed circuit boards or used as potting boxes.
- Satin Texture Finish.
- Complete with Lid and Two Self Tapping Screws.
- Screws are Colour Matched To Enclosure.
- 2 P.C. Board Standoffs Molded Into Interior.
- Lap Joint Construction Provides Protection Against Access of Dust and Splashing Water.
- Designed to meet IP54
Specifications

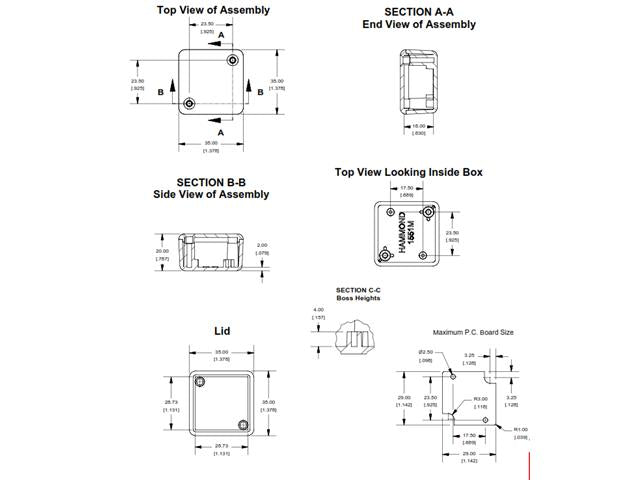

| Size L x W x H | 1.38 in x 1.38 in x 0.79 in (35 mm x 35 mm x 20 mm) |
|---|---|
| Shipping Weight | 0.03 lbs (0.01 kg) |
| Packaging Type | bag |
| Material | ABS Plastic |
| Color | Black |
| Flame Rating | UL94 HB |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Miniature, general purpose |
| Max. P.C. Board Length (mm) | 29 |
| Max. P.C. Board Width (mm) | 29 |
Downloads
Additional Information
| Device | Enclosure |
| Type | Plastic | Hand-Held |
