Product Details

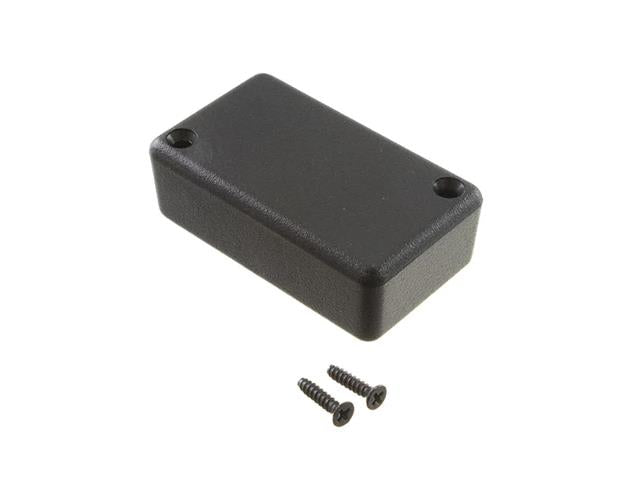

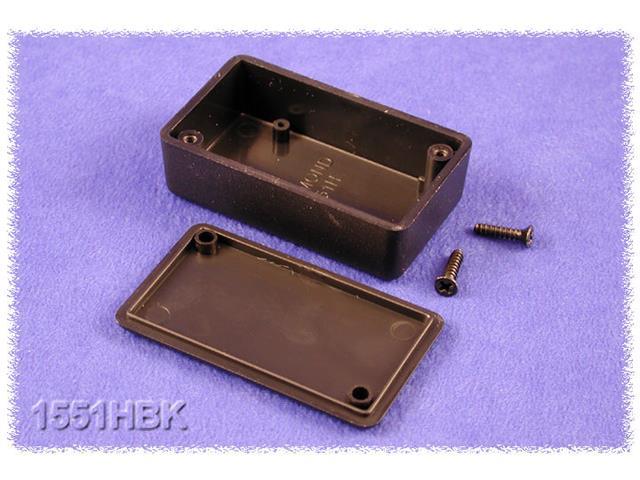

Miniature type Multipurpose Enclosure • ABS Plastic 60 mm x 35 mm x 20 mm Black
Miniature Type Multipurpose Enclosure
Feature(s)
- Ideally suited for mounting small printed circuit boards or used as potting boxes.
- Molded in a choice of black or grey - general purpose ABS plastic.
- Satin texture finish.
- Complete with lid and two self tapping screws.
- Screws are color matched to enclosure (nickel plated screws with grey enclosures and black plated with black enclosures).
- 2 P.C. board standoffs molded into interior.
- Lap joint construction provides protection against access of dust and splashing water.
- Designed to meet IP54.
Specifications
| Size L x W x H | 2.36 in x 1.38 in x 0.79 in (60 mm x 35 mm x 20 mm) |
|---|---|
| Shipping Weight | 0.04 lbs (0.02 kg) |
| Packaging Type | bag |
| Material | ABS Plastic |
| Color | Black |
| Flame Rating | UL94 HB |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Miniature, general purpose |
| Max. P.C. Board Length (mm) | 29 |
| Max. P.C. Board Width (mm) | 54 |
Downloads
Additional Information
| Device | Enclosure |
| Type | Miniature Type | Multipurpose |
