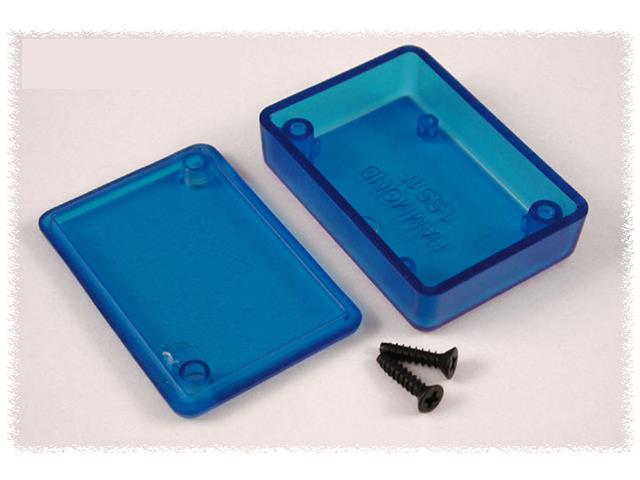

ABS Enclosure 50x35x15mm Translucent Blue IP54
Translucent Blue IP54 ABS Enclosure
Feature(s)
- Ideally suited for mounting small printed circuit boards or used as potting boxes.
- Molded in a choice of black, gray, or translucent blue general purpose ABS plastic.
- Satin texture finish.
- Complete with lid and two self tapping screws.
- This series is also available with flanged lids.
- Screws are color matched to enclosure (nickel plated screws with grey enclosures and
black plated with black enclosures). - 2 P.C. board standoffs molded into interior.
- Lap joint construction provides protection against access of dust and splashing water.
- Designed to meet IP54.
- Some sizes are available with a keyring kit.
- Models with key ring kit are predrilled in the narrow side.
- For even smaller enclosures, try our 1551MINI series.
Specifications
- Size L x W x H : 1.97 in x 1.38 in x 0.59 in (50 mm x 35 mm x 15 mm)
- Shipping Weight : 0.03 lbs (0.01 kg)
- REACH Compliant : Yes
- RoHS Compliant : Yes
- Packaging Type : bag
- Material : ABS Plastic
- Color : Trans. Blue
- Flame Rating : UL94 HB
- IP Rating : IP54
- Product Category : Enclosures
- Type : Miniature, general purpose
- Max. P.C. Board Length (mm) : 29.5
- Max. P.C. Board Width (mm) : 44.5
Downloads
Additional Information
| Device | Enclosure |
| Type | Translucent | Blue | IP54 | ABS |
