Product Details

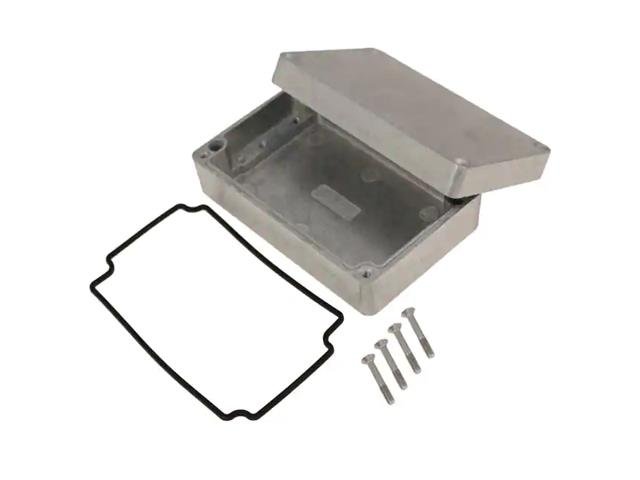

Enclosure Diecast Aluminium 125.4x80.4x25.2mm Watertight IP66
Enclosure Diecast Aluminium
Feature(s)
- Very economical - thick wall - diecast aluminum - watertight electronic instrument enclosure.
- Rugged, diecast aluminum alloy (tough - yet easy to machine),
- Two piece “tongue & groove” construction for protection against access of dust and water.
- Ideal for repetitive opening and closing.
- Unpainted version is vibra finished for a smooth surface with no sharp edges.
- Blackversion is coated with tough polyester powder for a lasting finish, even after machining. Finish is applied to the entire enclosure (inside & out).
- Lid secured with either two, four or six (count varies with size) stainless steel, Philips head, counter sunk, machine screws - into factory tapped holes.
- Lid screws are outside the gasket protection area to eliminate the need for “O” rings on the screws.
- lid screws are self captivating. The lid holes are slightly undersized & threaded with the first installation of the self tapping - lid screws (see photos)). Enclosure holes are pre-tapped.
- Designed to meet IP66 (NEMA 1, 4, 4X, 12 & 13 ratings. Gasket is pre-formed, one-piece silicone rubber and installs easily into lid groove.
- North American Mark of Safety - cUL & UL listed. Certified to NEMA 4X standards - File #E71073
- No internal ribs for easy installation of connectors without interference or additional milling.
Specifications
| Size L x W x H | 4.94 in x 3.17 in x 1.61 in (125 mm x 81 mm x 41 mm) |
|---|---|
| Shipping Weight | 0.86 lbs (0.39 kg) |
| Packaging Type | shrink wrap |
| Material | Aluminum (Die-Cast Alloy) |
| Color | Natural Aluminum |
| IP Rating | IP66 |
| Product Category | Enclosures |
| Type | Thick wall, water-tight |
| NEMA Rating | 1, 4, 4X, 12 & 13 |
| Max. P.C. Board Length (mm) | 70.14 |
| Max. P.C. Board Width (mm) | 115.14 |
Downloads
Additional Information
| Device | Enclosure |
| Type | Diecast Aluminium |
