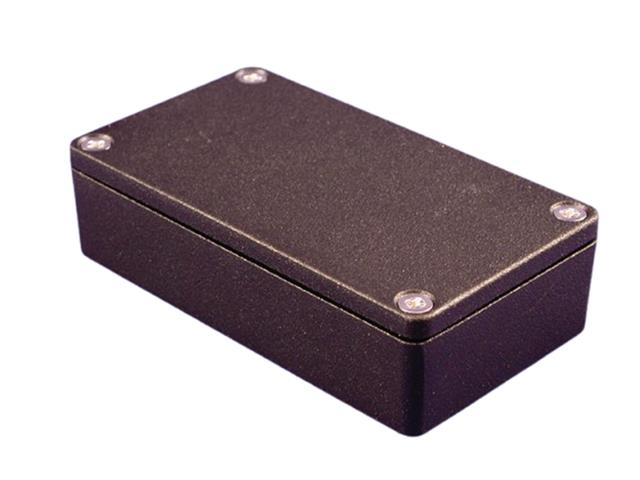

Watertight Diecast Aluminium Enclosure Black 115x66x30mm Watertight IP66
Watertight Diecast Aluminium Enclosure
Feature(s)
- Thick-wall diecast aluminum watertight electronic instrument enclosure.
- Rugged, diecast aluminum alloy is tough yet easy to machine.
- Two piece tongue and groove construction for protection against access of dust and water.
- Easy to wallmount using blind thru-box holes (on all sizes except 1550Z102, 1550Z115, and 1550Z120). Access to blind holes is outside of gasket ring to uphold ingress protection.
- Unpainted version is vibra finished for a smooth surface with no sharp edges.
- Textured black version is coated with tough polyester powder for a lasting finish, even after machining. Finish is applied outside and inside the enclosure.
- Lid is secured with either two, four, or six stainless steel Philips head machine screws, depending on enclosure size.
- Lid screws are outside the gasket protection area to eliminate the need for o-rings.
- Lid screws are self-captivating on six sizes: 1550Z107, 1550Z108, 1550Z116, 1550Z117, 1550Z137, and 1550Z139. Lid holes are slightly undersized and threaded with the first installation.
- Gasket is pre-formed, one-piece silicone rubber and installs easily into lid groove.
- Gasket has a temperature rating of -40°C to +150°C (-40°F to 302°F).
- cUL and UL listed under file #E71073.
-
Independently tested to meet IP66, IP67, and IP68 as well as NEMA Type 4, 4X, 12 & 13 ratings.
- Customers should conduct their own testing to determine suitability for any specific application.
- All sizes except 1550Z101 carry an impact rating of IK08 per IEC62262.
- No internal ribs for easy installation of connectors without interference or additional milling.
Specifications
| Size L x W x H | 4.54 in x 2.58 in x 1.2 in (115 mm x 66 mm x 30 mm) |
|---|---|
| Shipping Weight | 0.46 lbs (0.21 kg) |
| Packaging Type | shrink wrap |
| Material | Aluminum (Die-Cast Alloy) |
| Color | Black |
| IP Rating | IP66 |
| Product Category | Enclosures |
| Type | Thick wall, water-tight |
| NEMA Rating | 1, 4, 4X, 12 & 13 |
| Max. P.C. Board Length (mm) | 57.07 |
| Max. P.C. Board Width (mm) | 107.07 |
Downloads
Additional Information
| Device | Enclosure |
| Type | Watertight | Diecast Aluminium | Black |
