OpDAT REGpro Fiber Optic Front Cover come with 12xST SM+MM for use with 15024A series DIN Rail Housings

Fibre Splice Tray and Crimp Splice Holder

Feature(s)

splice distributor for TH35 rail without front cover
gray housing
with or without splice tray with crimp splice holder (CSH) for up to 12 splices
installation of two shrink splice holders (SSH)on splice tray is possible
with fiber reservoir
custom-labeled identification strips
fastening on top hat rail by means of very sturdy top hat rail holder
various mounting versions on rail
for different front plates 3RU/7HP
cable feed from top or bottom, straight or inclined, with M20 cable gland (up to 2 possible)

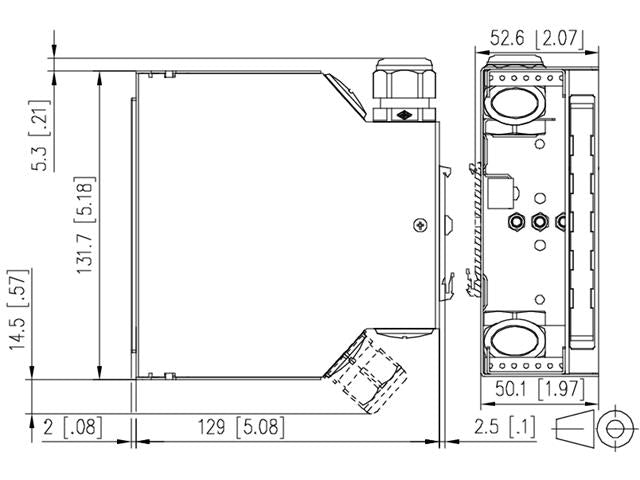

width: 50 mm, height: 128 mm, depth: 132.5 mm (from rail, without adapters)
feed of pre-terminated cables is possible
one cable gland M20 with strain relief included in the delivery
housing cover fastening by means of just one screw
variants: with and without splice tray
Please note: not all front plates 3RU/7HP available on the market can be used for OpDAT REGpro. If pre-ter

Device	Tray and Crimp Splice Holder
Type	Fibre Splice
