Product Details
Aluminium Diecast Enclosure 192.15 x 107.95 x 50.11 mm
Features
- Watertight - heavy duty extruded enclosures designed to house P.C. boards or for equipment interfacing
- Sized for standard Eurocards
- P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body

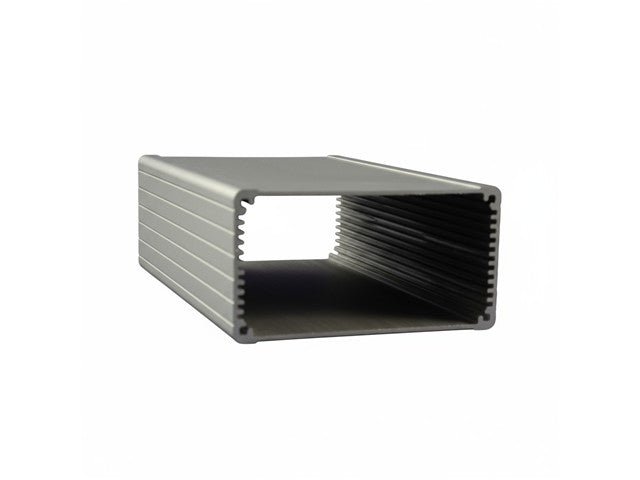

- Rugged body constructed from one piece, extruded aluminum with a minimum thickness of .06” (1.5 mm)
- Extruded aluminum body includes a recessed area for labels or membrane keypad
- End panels are rugged - yet easy to machine - diecast aluminum with full perimeter self-adhesive gaskets
- Designed to meet IP65

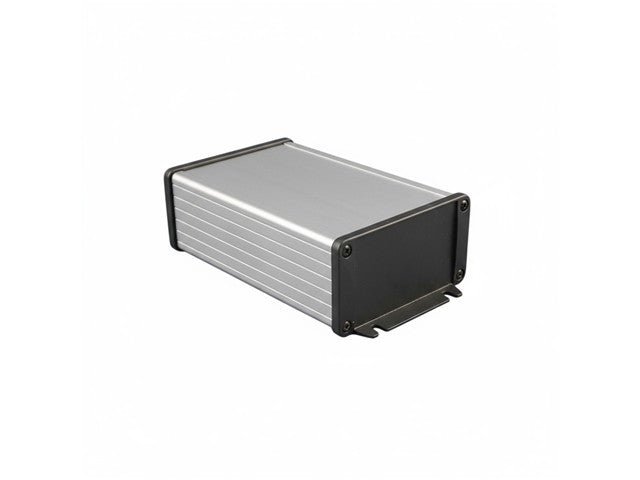

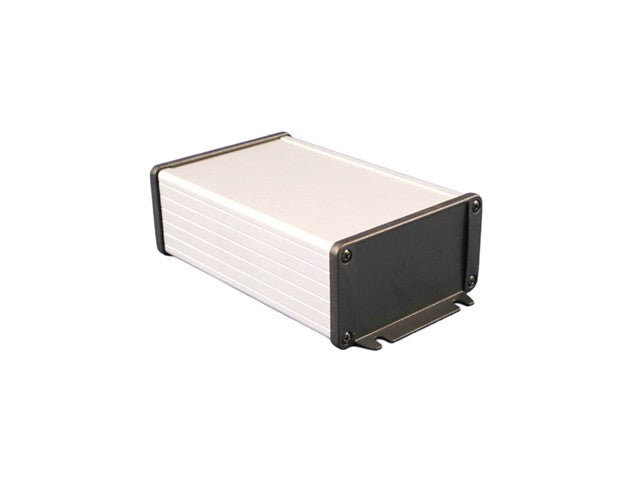

- Choice of two versions - end panels without flange or with flange (for shelf or wall mounting)
Specifications
| Product Type | Water-Tight Enclosure |
|---|---|
| Series | 1457 |
| Body Material | Extruded Aluminium |
| Gasket Material | Polyethylene Foam |
| External Dimensions | 192.15 x 107.95 x 50.11 mm |
| External Length | 192.15 mm |
| External Width | 107.95 mm |
| External Height | 50.11 mm |
| Internal Dimensions | 160 x 84 x 44.1 mm |
| Internal Length | 160 mm |
| Internal Width | 84 mm |
| Internal Height | 44.1 mm |
| Colour | Clear |
| IP Rating | IP65 |
| Lid Colour | Clear |
| Protection Features | Water-Tight |
