Product Details

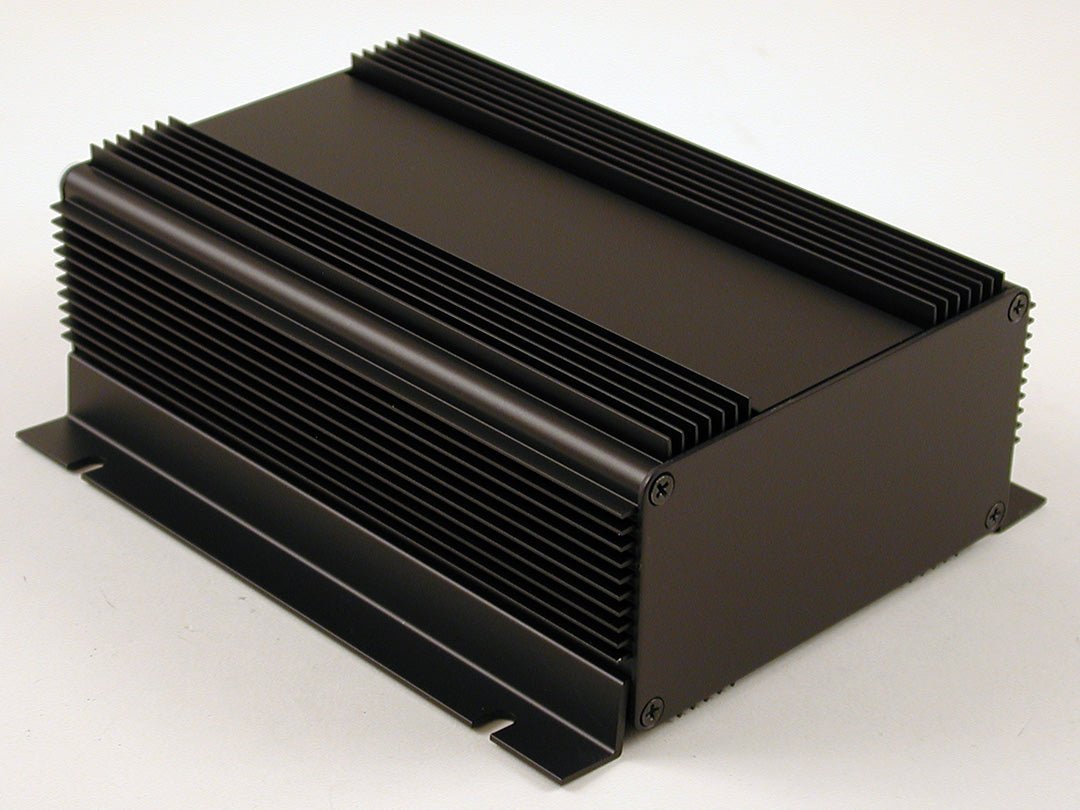

160x110x60,8mm Extruded Heat Dissipating Black Anodized Aluminium Enclosure with Metal End Plates
Aluminium PCB Enclosure
Feature(s)
- Designed to house PCBs or equipment
- Wall or shelf mounting with two removable flanges
- Integral heat dissipating fins for enhanced cooling
- Accepts 100x160mm Eurocard PCBs
- PCBs mount horizontally by sliding into internal slots
- Removable belly plate for access to top of enclosure
- Extruded body & aluminum endplates
- Includes eight assembly screws
Downloads
Additional Information
| Device | Enclosure |
| Type | Anodized Aluminium | Extruded Heat Dissipating |
| Highlights | with Metal End Plates |
| Body Material | Aluminium |
| Size | 160mm x 110mm x 60,8mm |
| Base Colour | Black |
