Product Details

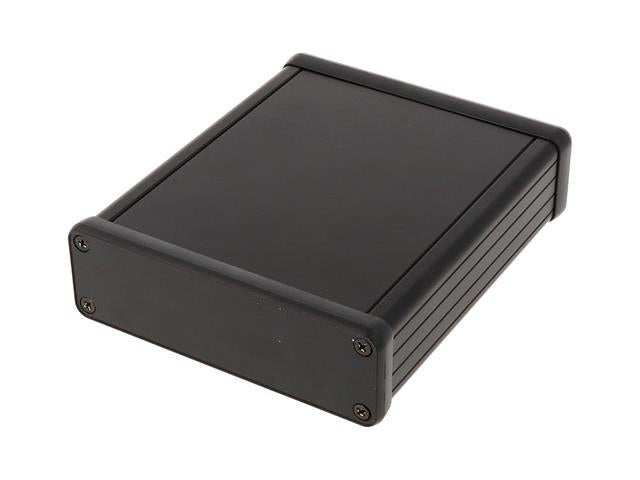

Enclosure Alluminium Extruded 120X103X53 with Black Plastic Ends
Enclosure Alluminium Extruded Black Plastic Ends
Feature(s)
- Extruded with plastic end plates
- Designed to house P.C. boards or for equipment interfacing.
- Sized for standard Eurocards.
- P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.
- Rugged body constructed from extruded aluminum with a minimum thickness of .06” (1.5 mm).
- Extruded body includes a slide removable "belly" plate
Specifications
| Size L x W x H | 4.72 in x 4.06 in x 1.22 in (120 mm x 103 mm x 31 mm) |
|---|---|
| Shipping Weight | 0.43 lbs (0.20 kg) |
| Packaging Type | shrink wrap |
| Material | Aluminum (Extruded) |
| Color | Black |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | PC Board Enclosure |
| Max. P.C. Board Length (mm) | 119 |
| Max. P.C. Board Width (mm) | 99 |
Additional Information
| Device | Enclosure |
| Type | Alluminium | Extruded | Black | Plastic Ends |
| Size | 120m x 103m x 53m |
| Base Colour | Black |
