Product Details

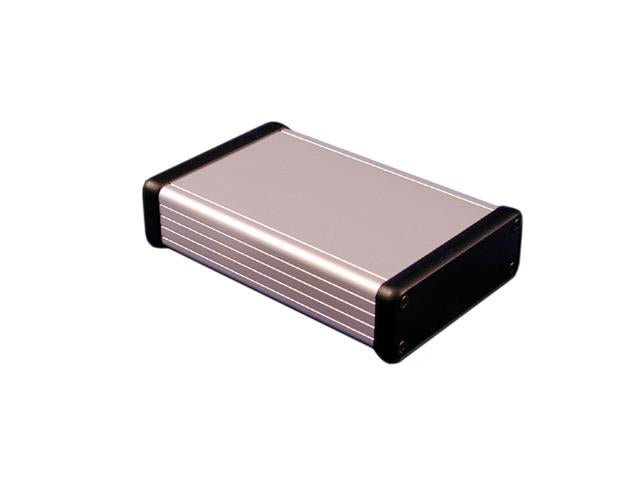

Extruded Aluminium Enclosure Clear 120x78x27 Plastic End Plates
Extruded Aluminium Enclosure
Feature(s)
- Designed to house P.C. boards or for equipment interfacing.
- Sized for standard Eurocards.
- P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.
- Rugged body constructed from extruded aluminum with a minimum thickness of .06” (1.5 mm).
- Extruded body includes a slide removable “belly” plate - except in smaller sizes “A” through “D”
Specifications
- Size L x W x H : 4.72 in x 3.07 in x 1.06 in x 0.75 in (120 mm x 78 mm x 27 mm)
- Shipping Weight : 0.32 lbs (0.15 kg)
- UNSPSC : 39121301
- UPC : 623980764528
- REACH Compliant : Yes
- RoHS Compliant : Yes
- Material : Aluminum (Extruded)
- Color : Clear (Anodize)
- IP Rating : IP54
- Packaging : shrink wrap
- Product Category : Enclosures
- Type : PC Board Enclosure
- Max. P.C. Board Length (mm) : 119
- Max. P.C. Board Width (mm) : 74
Downloads
Additional Information
| Device | Enclosure |
| Type | Extruded | Aluminium |
