Product Details

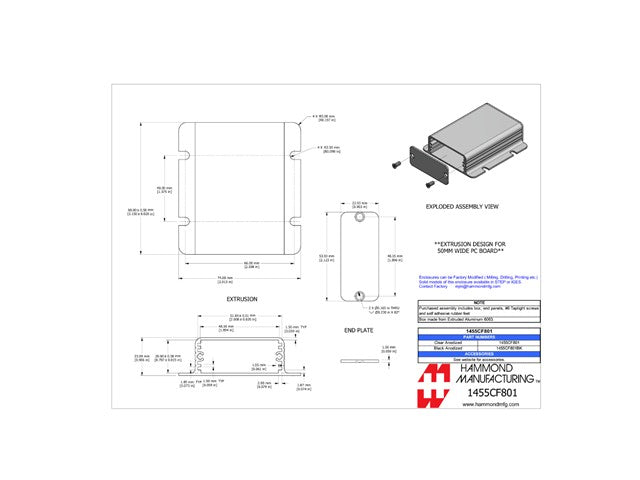

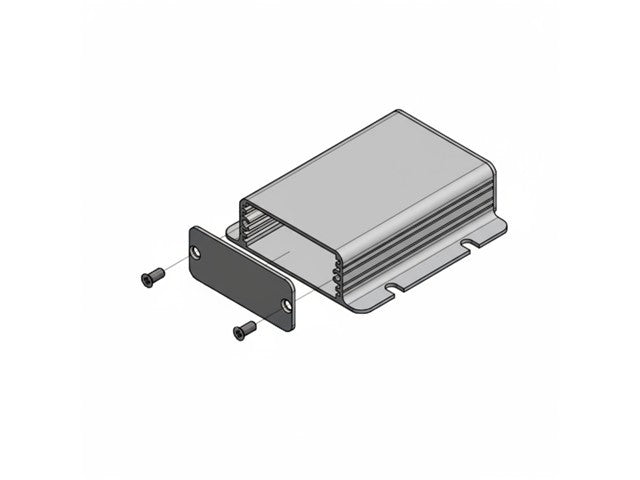

Extruded Aluminium Enclosure with Integrated Flange 80x54x23mm - Aluminium End Plates
Extruded Aluminium Enclosure
Feature(s)
- Designed to house P.C. boards or for equipment interfacing.

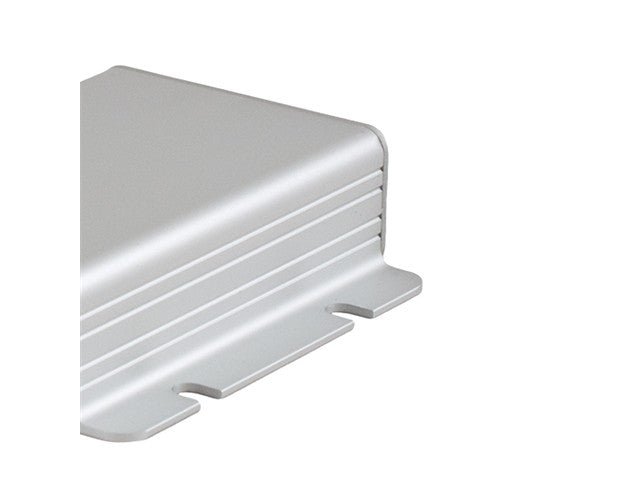

- Integrated slotted flanges allow for easy wall mounting.
- Flange provides a completely flat bottom surface and transitions seamlessly into the extrusion body for a finished look.
- P.C. boards mount into extrusions by sliding into internal slots extruded into the enclosure body.
- Rugged body constructed from extruded aluminum with a minimum thickness of .06” (1.5 mm).
Specifications
| Size L x W x H | 3.15 in x 2.13 in x 0.91 in (80 mm x 54 mm x 23 mm) |
|---|---|
| Shipping Weight | 0.18 lbs (0.08 kg) |
| UNSPSC | 39121301 |
| UPC | 623980563015 |
| REACH Compliant | Yes |
| RoHS Compliant | Yes |
| Packaging Type | shrink wrap |
| Material | Aluminum (Extruded) |
| Color | Clear (Anodize) |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | PC Board Enclosure |
| Max. P.C. Board Length (mm) | 79 |
| Max. P.C. Board Width (mm) | 50 |
Downloads
Additional Information
| Device | Enclosure |
| Type | Extruded | Aluminium |
