Product Details

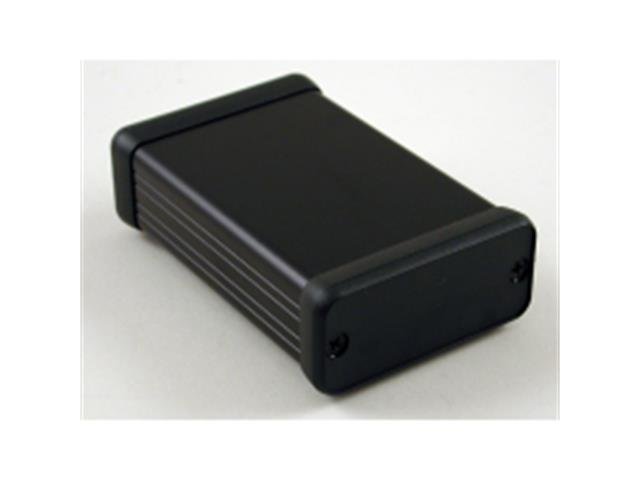

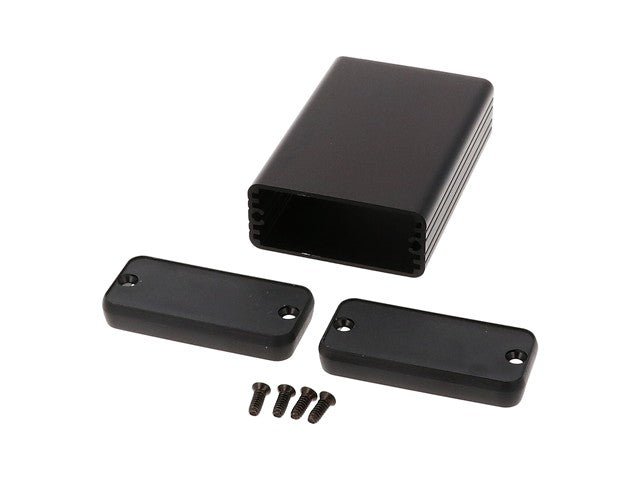

Aluminium Anodized 80x54x23mm Black Plastic End Panels Black
Aluminium Anodized Black Enclosure
Feature(s)
- Designed to house P.C. boards or for equipment interfacing.
- Sized for standard Eurocards.
- P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.
- Rugged body constructed from extruded aluminum with a minimum thickness of .06” (1.5 mm).
- Extruded body includes a slide removable “belly” plate - except in smaller sizes “A” through “D”
Specifications
| Size L x W x H | 3.15 in x 2.13 in x 0.91 in (80 mm x 54 mm x 23 mm) |
|---|---|
| Shipping Weight | 0.16 lbs (0.07 kg) |
| Packaging Type | shrink wrap |
| Material | Aluminum (Extruded) |
| Color | Black |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | PC Board Enclosure |
| Max. P.C. Board Length (mm) | 79 |
| Max. P.C. Board Width (mm) | 50 |
Downloads
Additional Information
| Device | Enclosure |
| Type | Aluminium | Anodized | Black |
