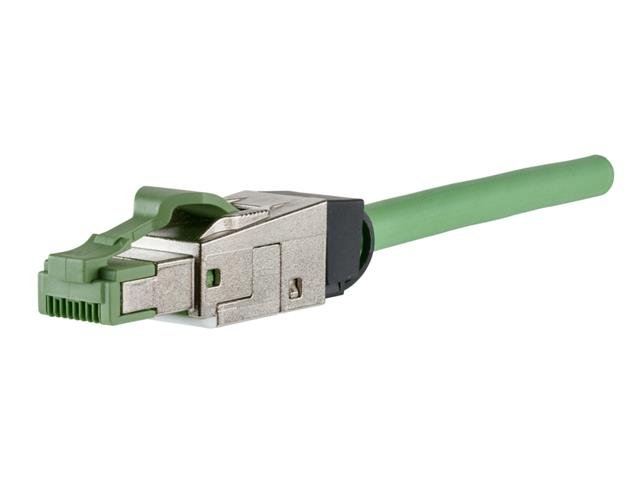

Profinet Pro Industrial RJ45 Connector Fully Shielded CAT5 2 Pair Class D IDC Termination for Solid/Stranded Wire 26 - 22AWG 180 Degree Cable Entry- 10,5mm MAX OD (1132030000)
Pro Industrial RJ45 Connector
Feature(s)
- IDC Termination for Solid/Stranded
- Wire 26 22AWG
- 180 Degree Cable Entry
- 10,5mm Max OD
Specifications
- Cat.5 class D RJ45 plug, 2 pairs, to be assembled in the field
- Fully shielded and multi-port capable
- Straight (180°) cable feed
- Easy assembly - connection without special tools
- Wire connection: stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mm
- Wire connection: solid wire AWG 26/1 to 22/1, wire diameter from 0.4 to 0.64 mm
- Transmission characteristics Cat.5 per ISO/IEC 11801 Ed.2.2:2011-06
- Compliance with class D to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09
- 100 MBit suitable according to IEEE 802.3
- Suitable for Remote Powering (PoE and PoE plus) and HDBaseT
- Degree of protection IP20
- For cable jacket diameter from 5.5 to 10.5 mm
- Zinc die-cast housing for industrial use consists of only 2 parts
- Strain relief by latching clip directly on the stuffer cap
- Protected locking hook
- Reconnectable
Downloads
Additional Information
| Device | Connector |
| Type | RJ45 | Fully Shielded | CAT5 | 2 Pair Class D |
