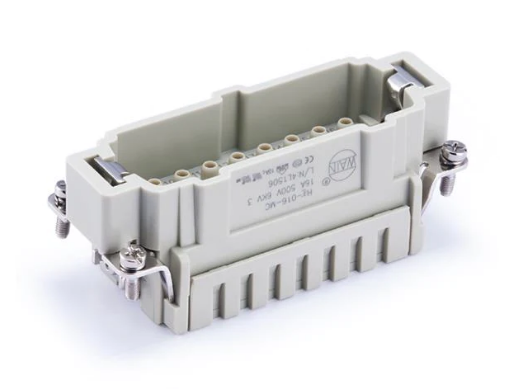

HE-016-MC - High-Performance Power Connectivity Han E 16P M Crimp Insert

HE-016-MC - High-Performance Power Connectivity Han E 16P M Crimp Insert

Normaler Preis Dhs. 33.86
Normaler Preis Verkaufspreis Dhs. 33.86
Sale Ausverkauft
Versand wird beim Checkout berechnet

HARTING Han E 16P M Crimp Insert - High-Performance Power Connectivity

Ensure secure and efficient power transmission with the HARTING Han E 16P M Crimp Insert. This high-quality, heavy-duty connector insert features 16 power contacts plus a Protective Earth (PE) connection, making it ideal for a wide range of industrial power applications.

Key Features:

  • Series: Han E - A proven and reliable industry standard.
  • Number of Positions: 16 + PE (Protective Earth)
  • Gender: Male insert for mating with female connectors.
  • Termination Style: Crimp - Provides a reliable and vibration-resistant connection. Please note: Contacts must be ordered separately.
  • Current Rating: 16 A - Suitable for medium to high power requirements.
  • Voltage Rating: 500 V - Designed for industrial voltage levels.
  • Housing Size: 16B - Compatible with standard size 16B housings and hoods.
  • Robust Construction: Polycarbonate (PC) housing offers excellent durability and insulation.
  • Wide Wire Gauge Range: Accepts wires from 20 AWG to 12 AWG.
  • Bulk Packaging: Ideal for industrial users and assembly processes.
  • Trusted Brand: Manufactured by HARTING, a global leader in industrial connectivity.
Article No. 122 016 010 0001
Industry No. 09330162602
Size: 16B
Series: 16E

Datasheet HE-016-MC



Inserts
Number of contacts 16+PE
Electrical data acc. to DIN EN 61 984
---Rated current 16A
---Rated voltage 500V
---Rated impulse voltage 6kV
---Pollution degree 3
---Pollution degree 2 also 16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
  hard-silver plated
Contact resistance ≤1mΩ
Crimp terminal
---Wrie gauge 0.14-4.0mm²
---AWG 26-12
---Stripping length 7.5mm


ACCESSORIES

Please Click here to view list of Accessories for Size 16B
