Har-modular PCB Angled Coaxial Contact for DIN41612-M Angled Mixed Signal Connector.

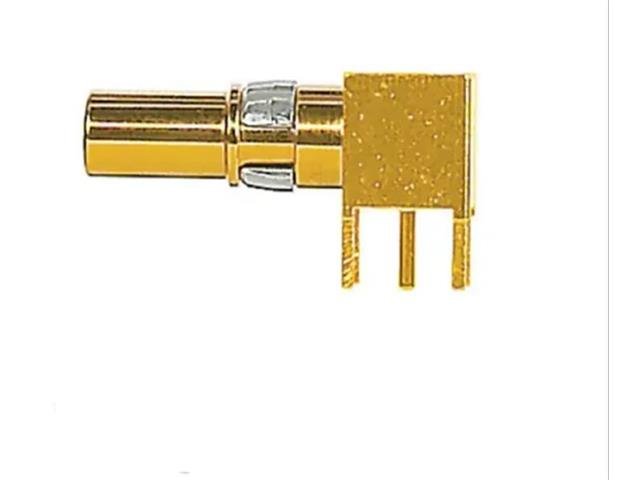

Har-modular PCB Angled Coaxial Contact
Specifications
| Rated current |
≤ 1.5 A |
| Insulation resistance |
>109 Ω |
| Contact resistance |
≤10 mΩ for inner contact die |
| ≤3 mΩ for outer ferrule |
| Impedance coaxial |
50 Ω |
| Limiting temperature |
-55 ... +125 °C |
| Return loss |
>26 dB @ 1 GHz |
| >25 dB @ 2 GHz |
| >17 dB @ 4 GHz |
| Insertion force |
≤ 10 N |
| Withdrawal force |
≥ 1 N |
| Performance level |
1 |
| Mating cycles |
≥ 500 |
| Test voltage Ur.m.s. |
0.75 kV |
| Frequency |
4 GHz |
| Material (contacts) |
Copper alloy |
| Surface (contacts) |
Noble metal over Ni Mating side |
| Material (locking) |
Copper alloy |
| RoHS |
compliant with exemption |
| RoHS exemptions |
6(c): Copper alloy containing up to 4 % lead by weight |
| ELV status |
compliant with exemption |
| China RoHS |
50 |
| REACH Annex XVII substances |
Not contained |
| REACH ANNEX XIV substances |
Not contained |
| REACH SVHC substances |
Yes |
| REACH SVHC substances |
Lead |
| ECHA SCIP number |
339476a1-86ba-49e9-ab4b-cd336420d72a |
| California Proposition 65 substances |
Yes |
| California Proposition 65 substances |
Lead |
| Nickel |
Additional Information
| Device |
Co Axial Contact |
| Type |
Har-modular | PCB | Angled |
