Product Details

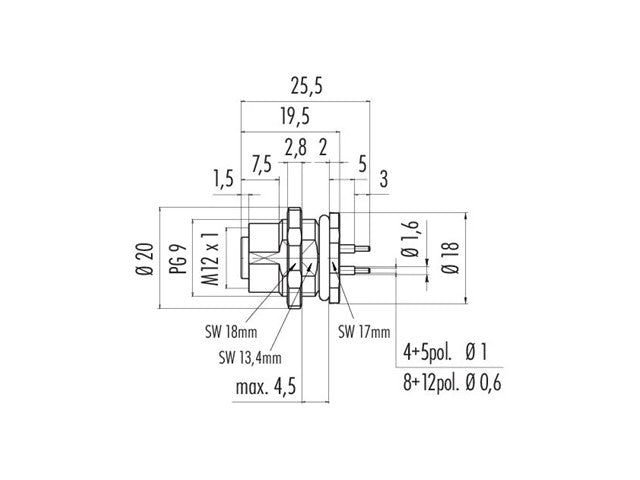

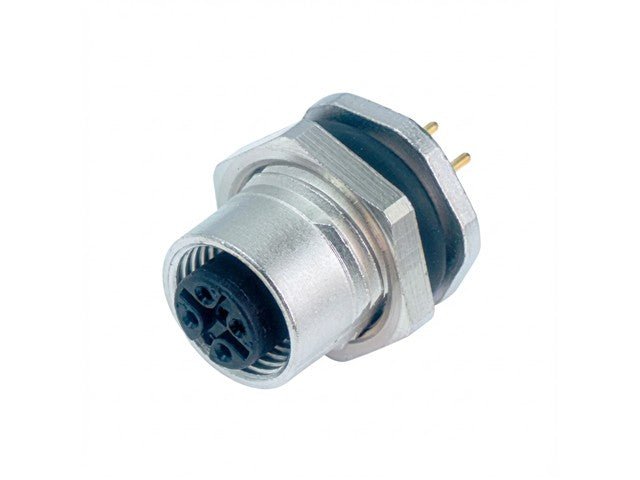

Circular Connector M12 D COD Panel Female 4 Pole Front Mount PG9 PCB Contacts IP67
Female Circular Connector M12 D COD Panel
Specifications
General Values
- Connector Design : Female Panel Mount Connector
- Connector Locking System : Bolted
- Termination : Dip-Solder
- Upper Limit Temperature : 85 °C
- Lower Limit Temperature : -40 °C
Electrical values
- Rated Voltage 250 V
- Rated Impulse Voltage : 2500 V
- Pollution Degree : 3
- Overvoltage Category : II
- Insulating Material Group : II
- Rated Current (40 °C) : 4 A
- Volume Resistivity : ≤ 3 mΩ
- EMC Compliance : Shielded
- Degree of Protection : IP67
- Mechanical Operation : > 100 Mating cycles
Material
- Contact Material : CuSn (Bronze)
- Contact Plating : Au (gold)
- Contact Body Material : PA
Downloads
Additional Information
| Device | Connector |
| Type | Female | Circular | M12 | D COD | Panel |
| Highlights | 4 Pole | Front Mount | PG9 | PCB |
