Product Details

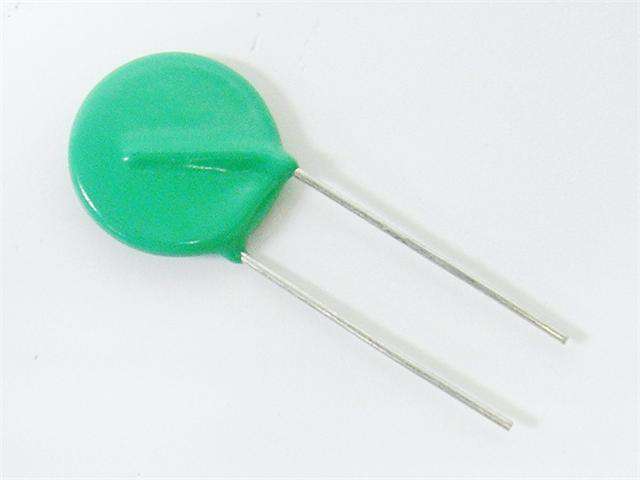

MOV Metal Oxide Varistor Ø 20mm • VACrms= 350V • Prated= 1W • Energy10/1000 uS= 220 J
Overview
 ZOV varisotrs are nonlinear 2-electrode semiconductor voltage-dependant resistors, which are designed for transient voltage suppression and surge energy absorption.
Features
Â
- Large absorbing transient energy capability
- Very short response time
- Low Clamping ratio and no follow-on current
- High resistance Insulation Material prevents the electric arching to the adjacent devices
Specification

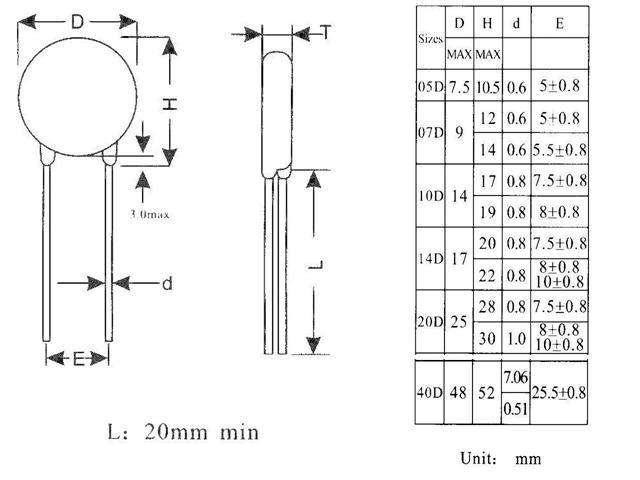

| Size | 20mm |
| Max Allowable ACrms Voltage (V) | 350V |
| Max Allowable DC Voltage (V) | 460V |
| Varistor Voltage @1mA (V) | 560V |
| Max Peak Current @8/20uS (A) | 6500A |
| Max Energy 10/1000 uS (J) | 220 |
| Rated Power (W) | 1W |
| Typical Capacitance @ 1kHz (pF) | 710F |
