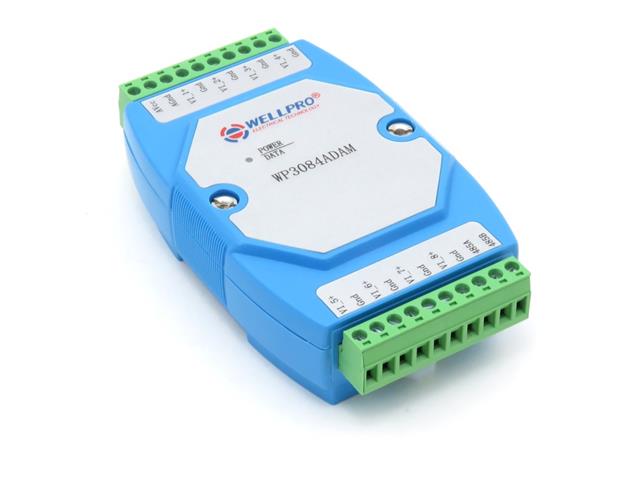

Product Details
RS485 MODBUS RTU standard communication protocol -Eight voltage input channel: DC0~10V
Standard Modbus RTU Communication Protocol
Features
- Eight voltage input channel: DC0~10V
- RS485 MODBUS RTU standard communication protocol
- Netted with configuration software, PLC or industry touch panel
- Communication status LED
- Communication circuit designed for thunder protection and interference immunity
- Used for signal collection and control in industrial field
Specifications
- Analog input channel 8ch
- Analog input range DC0~10V
- Analog input accuracy ±0.02V
- Working temperature -20~70℃
- External power supply DC9V~30V/2W
- Isolation protection DC1500V
- Installation method Standard DIN slide rail or screw
- Dimension 125×73×35mm
Downloads
Additional Information
| Device | Modbus |
| Type | RS485 |
