Product Details

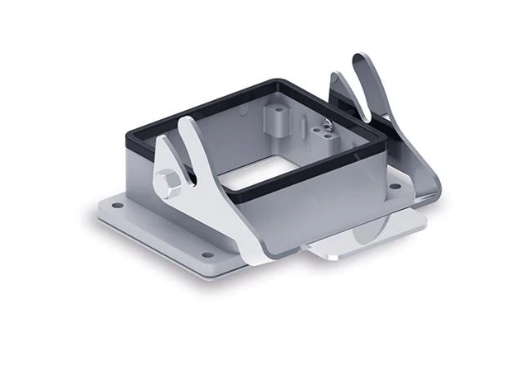

Bulkhead Housing Metal with 1 Locking Lever Top Entry For "32B" Series. IP67
Bulkhead Housing Metal
Specifications
| Material | aluminium die-cast |
| Colour | grey |
| Locking element | |
| -Lever type | metal elastic pressing |
| -Material | stainless steel |
| Hoods/Housings seal | NBR |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Degree of protection acc.to DIN EN60 529 for coupled connector | IP67 |
Downloads
Additional Information
| Device | Housing |
| Type | Bulkhead | Metal |
