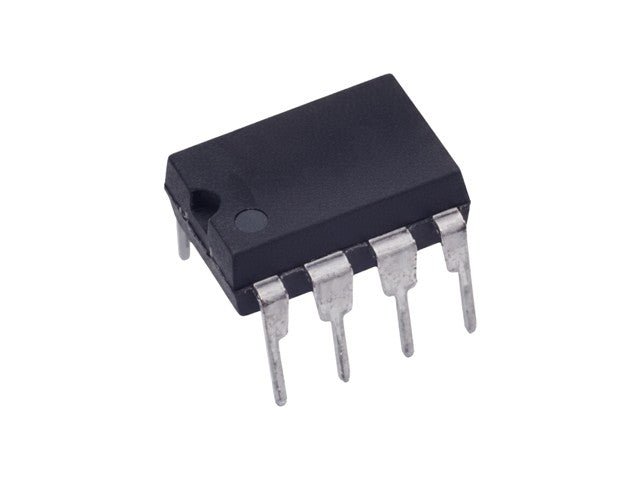

Power Controller SMPS 13W 8PDIP

Power Controller SMS

Specifications

Device Type: Offline SMPS primary switcher IC
Package: DIP-8 / SO-8
Switching Frequency: 60 kHz (fixed)
VDD Operating Voltage: 9 V – 38 V
Control Method: Current-mode PWM
Integrated MOSFET: High-voltage internal power MOSFET
Start-up: High-voltage start-up current source
Undervoltage Lockout: Yes (with hysteresis)
Protection Features: Over-temperature, over-current, over-voltage (auto-restart)
Typical Output Power (85–265 VAC): ~5 W (SO-8), ~8 W (DIP-8)
Typical Output Power (195–265 VAC): ~8 W (SO-8), ~13 W (DIP-8)
Duty Cycle (max): ~16 %
Operating Temperature: −40 °C to +150 °C
Applications: Chargers, TV standby supplies, LED drivers, auxiliary supplies

Device	Power Controller
Type	Power \| Controller \| SMS \| 13W \| 8PDIP
