Product Details
Victron Smart Battery Protect 12/24V 220A, Operating Voltage Range: 6-35V, Alarm O/P Delay: 12sec, Load Disconnect Delay:90 Sec (Immediate if triggered by the VE.Bus BMS), M8/9Nm, Max Load on Alarm O/P:50ma, 60x123x12mm, IP67

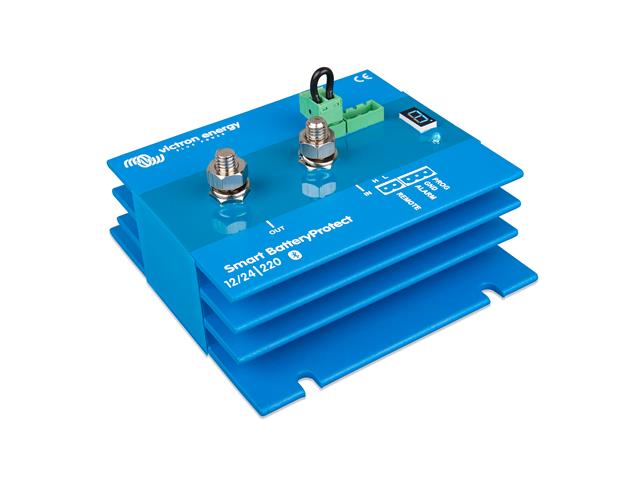

Smart Battery Protect 12/24V 220A
Overview
The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine. The on/off input can be used as a system on/off switch
Specifications
- Smart BatteryProtect Smart : BP-220
- Maximum continuous load current* : 220A
- Peak current (during 30 seconds) : 600A
- Operating voltage range : 6 –35V
- Current consumption
- BLE On When on: 1,4 mA When off or low voltage shutdown: 0,9 mA
- BLE Off When on: 1,2 mA When off or low voltage shutdown: 0,7 mA
- Alarm output delay : 12 seconds
- Maximum load on alarm output : 50 mA (short circuit proof)
- Load disconnect delay : 90 seconds (immediate if triggered by the VE.Bus BMS)
- Load reconnect delay : 30 seconds
- Default thresholds : Disengage: 10,5V or 21V Engage: 12V or 24V
- Operating temperature range : Full load: -40°C to +40°C (up to 60% of nominal load at 50°C)
- IP rating : Electronics: IP67 (potted) Connections: IP00
- Connection : M8
- Mounting Torque : 9 Nm
- Weight : 0,8 kg 1.8 lbs
- Dimensions (hxwxd) : 60 x 123 x 121 mm (2.4 x 4.8 x 4.8 inch)
Downloads
Additional Information
| Device | Battery Protect |
| Type | Smart | 12/24V 220A |
