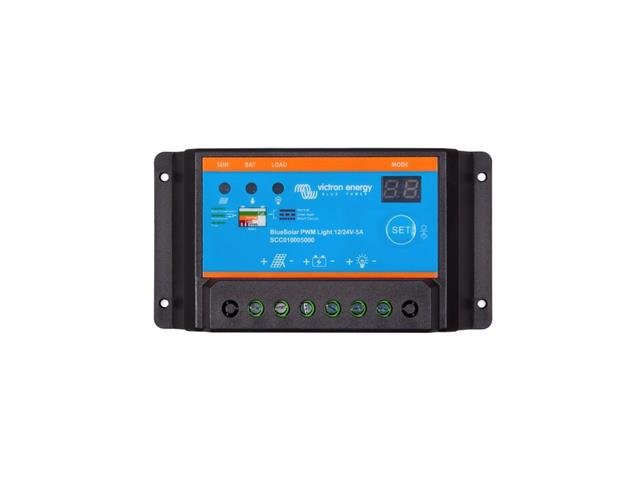

Victron Bluesolar PWM Light Solar Charge Controller 12/24V 5A
Bluesolar PWM Light Solar Charge Controller
Feature
- Load output with low battery voltage disconnect function.
- Lighting control function, one timer only.
- Two digit seven segment display for quick and easy setting of the load output functionality, including
timer setting. - Three stage battery charging (bulk, absorption, float), not programmable.
- Load output protected against over load and short circuit.
- Protected against reverse polarity connection of the solar array and/or battery.
Specifications
- BlueSolar PWM-Light : 12/24-5
- Battery Voltage : 12/24 V with automatic system voltage detection
- Rated charge current : 5A
- Automatic load disconnect : Yes
- Maximum solar voltage : 28V / 55V (1)
- Self-consumption : < 10 mA
- Load output : Manual control + low voltage disconnect
- Protection : Battery reverse polarity (fuse), Output short circuit, Over temperature
- Overload protection
- Shut down after 60 s in case of 130% load
- Shut down after 5 s in case of 160% load
- Short circuit: immediate shut down
- Grounding : Common positive
- Operating temp. range : -20 to +50°C (full load)
- Humidity (non-condensing) : Max 95%
BATTERY
- Charge voltage 'absorption' : 14.2V / 28,4V
- Charge voltage 'float' : 13.8V / 27,6V
- Low voltage load disconnect : 11,2V / 22,4V
- Low voltage load reconnect
- 12,6V / 25,2V (manual)
- 13,1V / 26,2V (automatic)
ENCLOSURE
- Protection class : IP20
- Terminal size : 5 mm² / AWG10
- Weight : 0,15kg
- Dimensions (h x w x d) : 70 x 133 x 33,5 mm (2.8 x 5.3 x 1.3 inch)
Downloads
Additional Information
| Device | Solar Charge Controller |
| Type | Bluesolar | PWM | Light |
