Product Details

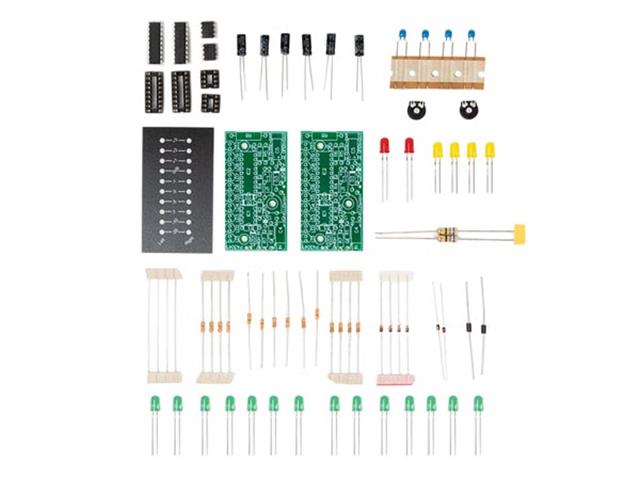

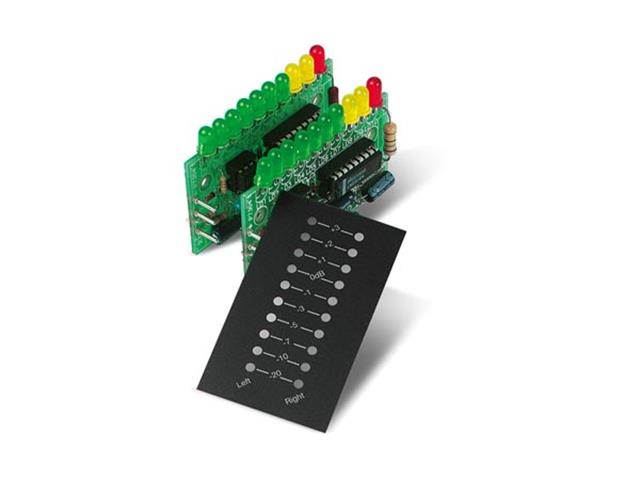

Stereo VU meter with 2 x 10 LEDs (dot or bar indicator) and an adjustable input. Package contents include 1 front panel suitable for horizontal or vertical mounting.
VU-Meter Stereo
Overview
Stereo VU meter with 2 x 10 LEDs (dot or bar indicator) and an adjustable input. Package contents include 1 front panel suitable for horizontal or vertical mounting.
Specifications
- Range : -20dB to +3dB
- Power Supply: 10 - 15VDC / 250mA
Input Sensitivity:
- Low Input: 150mV to 6Vrms (47K)
- High Input: 1.5V to 60Vrms (470K)
- Dimensions: 37 x 68mm / 1.5 x 2.7" (x2)
Additional Information
| Device | Stereo |
| Type | VU-Meter |
