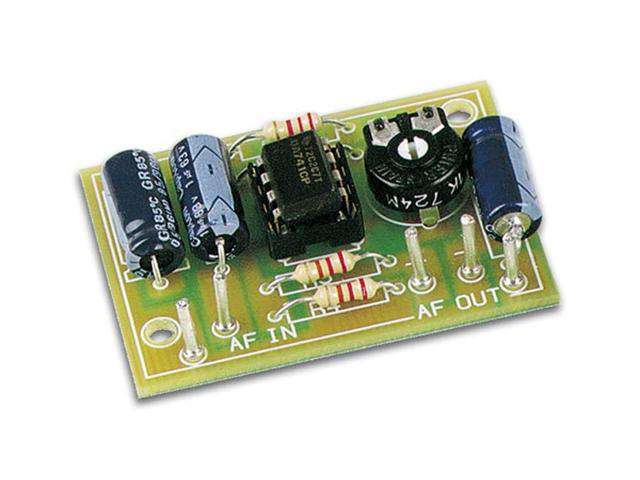

Universal Mono Pre-Amplifier Kit
• Function Group : Audio / Amplifiers etc.
• Function Group : Audio / Amplifiers etc.
Overview
This kit was developed as pre-module for a number of audio applications where the input signal is too weak. Applications as a microphone pre-amplifier or for level correction.
Features
Specification
- power supply: 10-30VDC / 10mA
- output impedance: 1Kohm
- adjustable output level: max. 40dB
- frequency range: 20Hz to 20kHz ± 3dB
- max. input signal: 40mV
- PCB dimensions: 30 x 44mm / 1.2 x 1.7"
