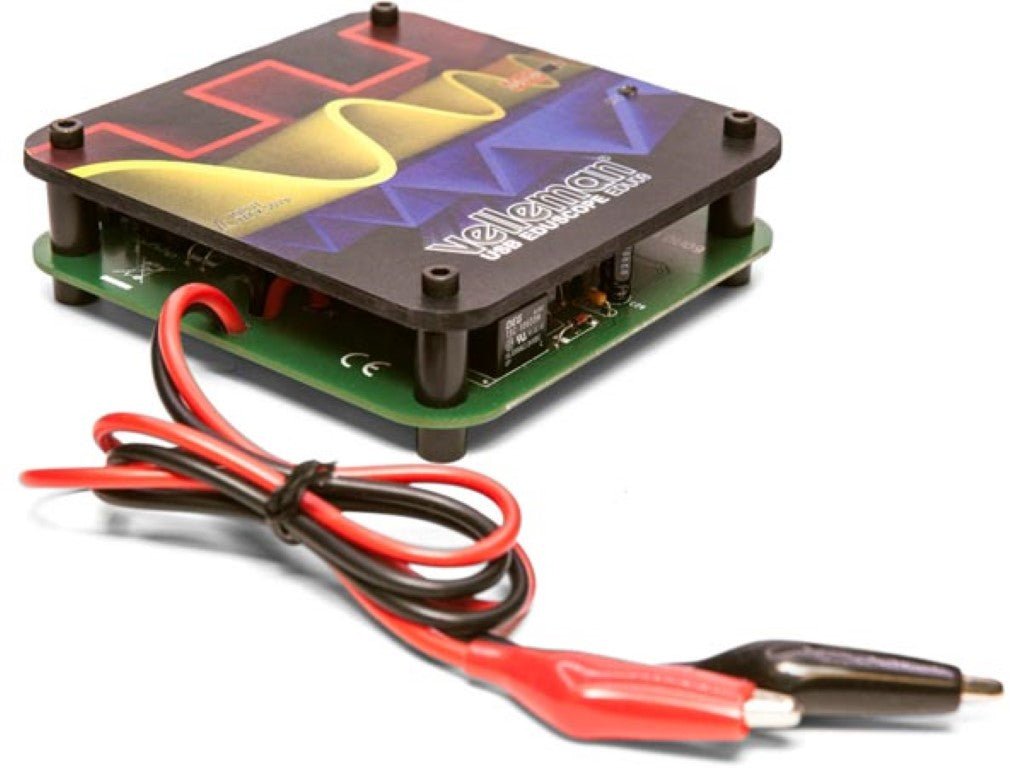

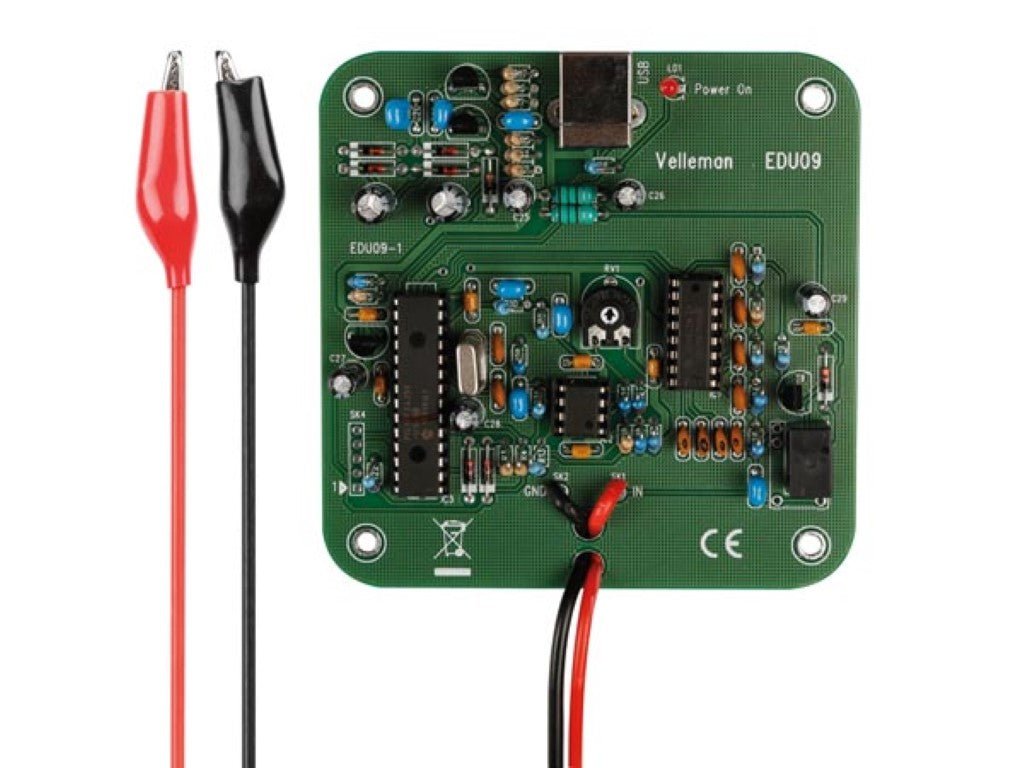

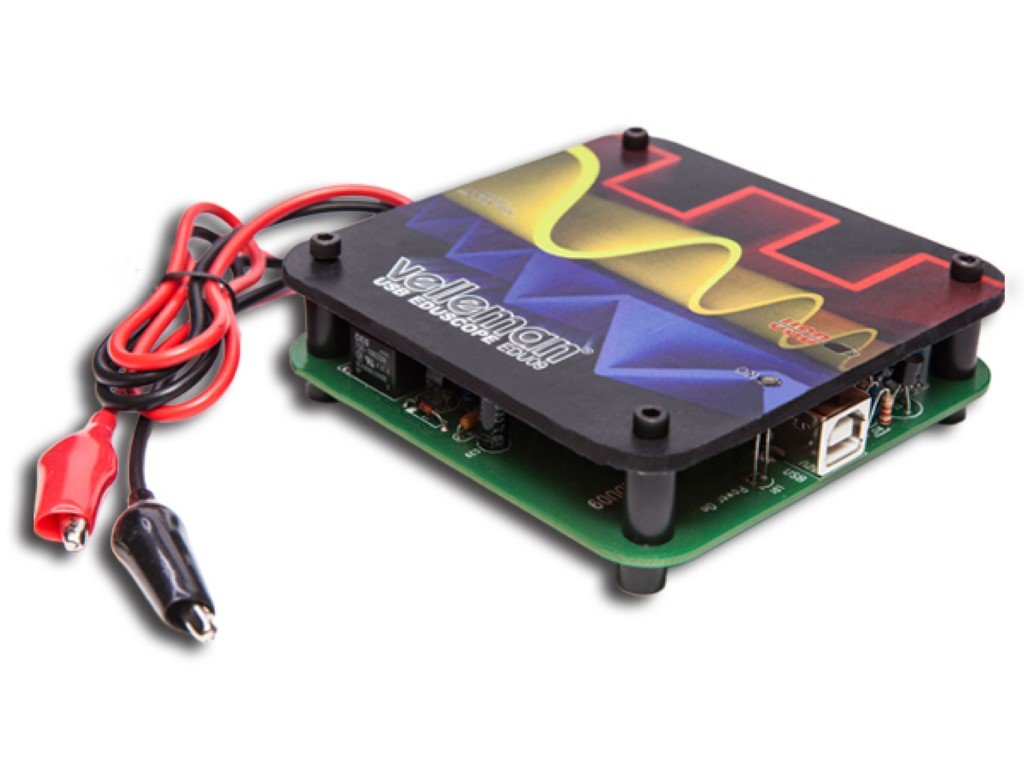

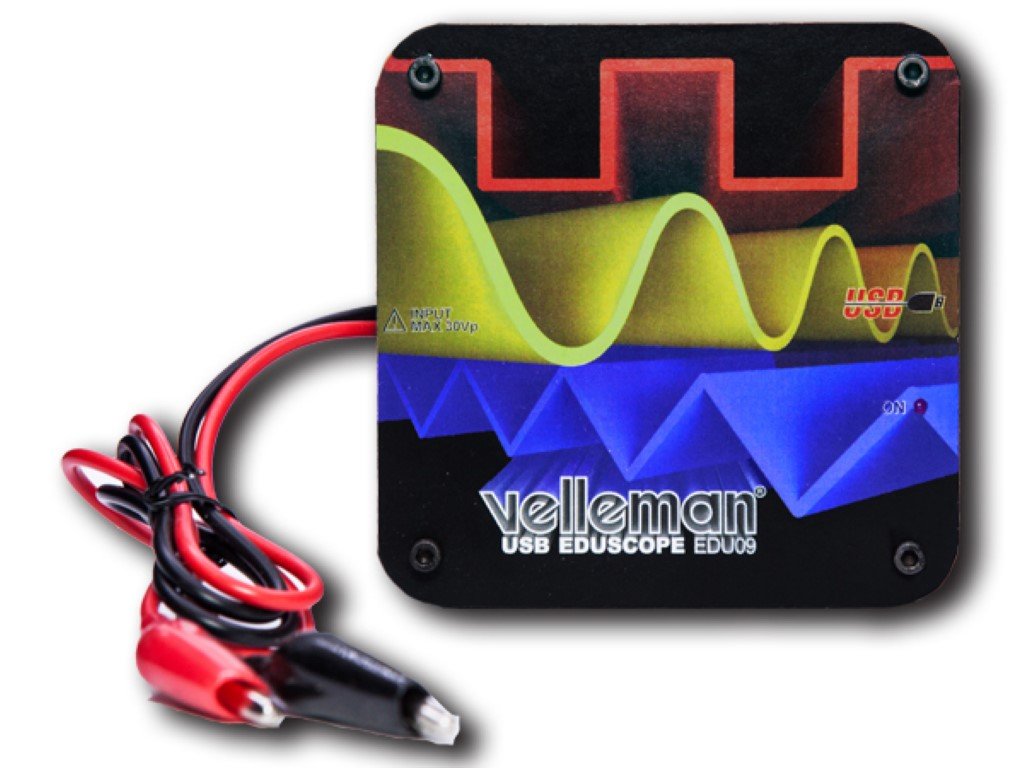

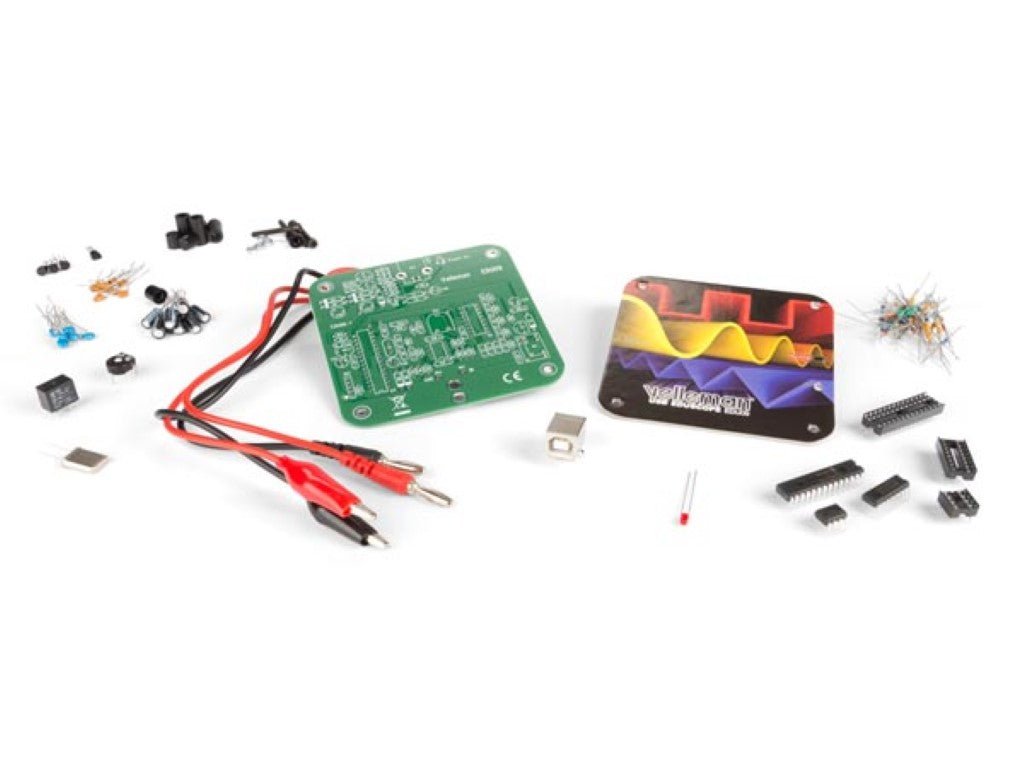

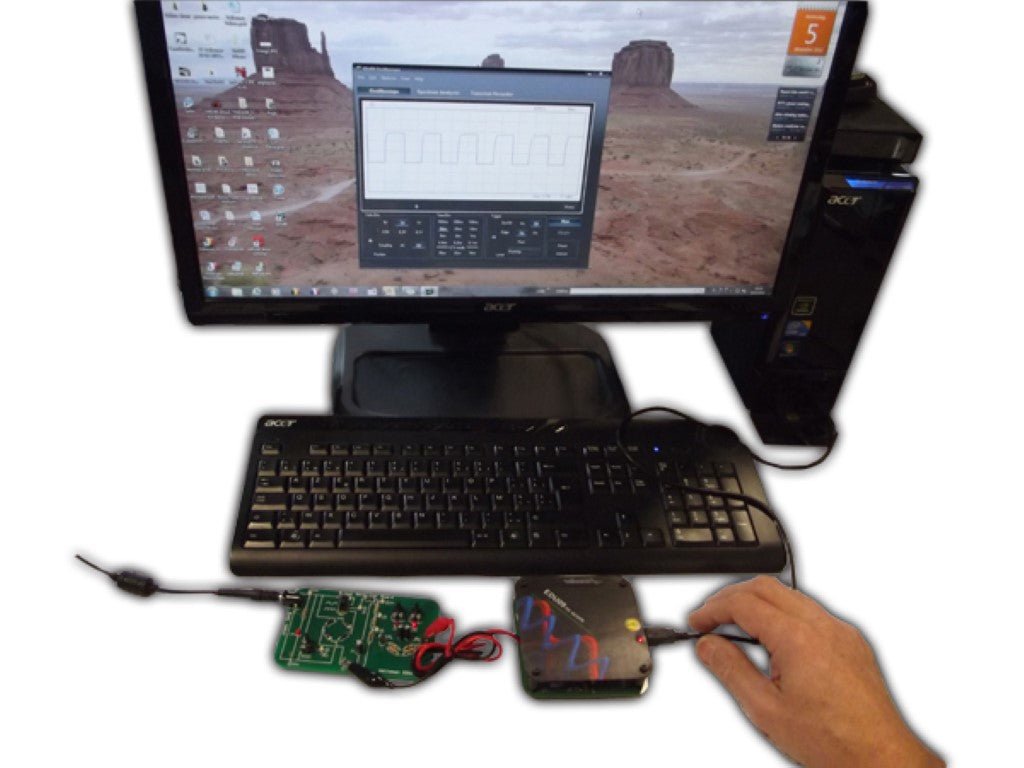

VELLEMAN EDU09

 Oscilloscope :

• Bandwidth: Dc To 200 Khz ± 3 Db
• Input Impedance: 100 Kohm / 20 Pf
• Maximum Input Voltage: 30 V (ac + Dc)
• Time Base: 10 Îœs To 500 Ms Per Division
• Input Range: 100 MV To 5 V/division
• Input Sensitivity: 3 MV Display Resolution
• Readouts: True Rms, Dbv, Dbm, P To P, Duty Cycle, Frequency…
• Record Length: 1k Samples
• Sampling Frequency: 62.5 Hz To 1.5 Mhz
• Sample History Function
• Auto Set-up Function
• Pre-trigger Function : On 0.1 Ms/div .. 500 Ms/div Ranges
• Persistence Options: Colour Graded, Variable And Infinite

Spectrum Analyser:

• Frequency Range: 0 .. 150 Hz To 75 Khz
• Operating Principle: Fft (fast Fourier Transform)
• Fft Resolution: 512 Lines

Transient Recorder:

• Timescale: 20 Ms/div To 2000 S/div
• Max. Recording Time: 9.4 H/screen
• Automatic Storage Of Data
• Record And Display Of Screens
• Automatic Recording For More Than 1 Year
• Max. Number Of Samples: 100/s
• Min. Number Of Samples: 1 Sample/20 S

General Information:

• Markers For: Amplitude/voltage And Frequency/time
• Expert Or Basic Mode Selection In Software
• Input Coupling: Dc And Ac
• 8 Bit Resolution
• Storage Of Display And Data
• Power Supply Through Usb: +/- 200 Ma
• Uses Microsoft® Human Interface Device (hid) Driver, No External Driver Required
• Dimensions: 94 X 94 Mm / 3.7 X 3.7"

Minimum System Requirements:

• IBM Compatible PC
• Windows® XP, Vista, 7, 8 *
• SVGA Display Card (min. 1024 X 768)
• Mouse
• Free USB Port 1.1 Or 2.0
