Product Details

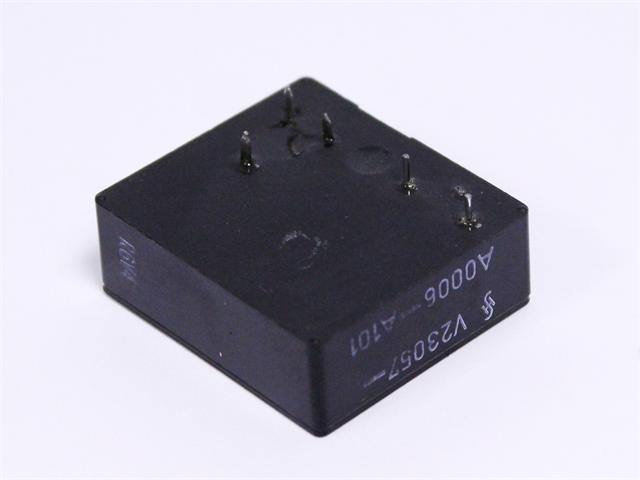

Relay PCB SPDT HORIZ 24VDC 1200R 8A 250VAC
Power PCB Relay
Features
- 1 pole 8A, 1 form C (CO) or 1 form A (NO) contact
- 4kV coil-contact
- Vertical and horizontal version
- Version with bifurcated contacts
- Wash tight
- RoHS compliant (Directive 2002/95/EC)
Downloads
Additional Information
| Device | Relay |
| Type | PCB | Horizontal |
| Contact Form | Form 1C |
| Coil Rated Voltage | 12V |
| AC/DC Voltage | DC |
| Max. Switching Current | 8A |
| Coil Power | 480mW Power |
| Coil Resistance | 1200Ω |
| Approvals | VDE REG.-Nr. 5146, UL E214025 |
| Contact Material | AgNi |
