Product Details
Benchtop Digital Multimter True RMS, DCV:200mV/2V/20V/200V/1000V, ACV:2V/20V/200V/750V, AC/DC 20A , RES:200Ω/2kΩ/20kΩ/200kΩ/2MΩ/200MΩ, CAP: 20nF/200nF/2μF/20μF/200μF/2mF/20mF/100mF,FREQ:200Hz~10MHz, DISPLAY:2000, RANGE:MANUAL, 265x110x320mm, 3.07kg
Digital Multimter True
Overview

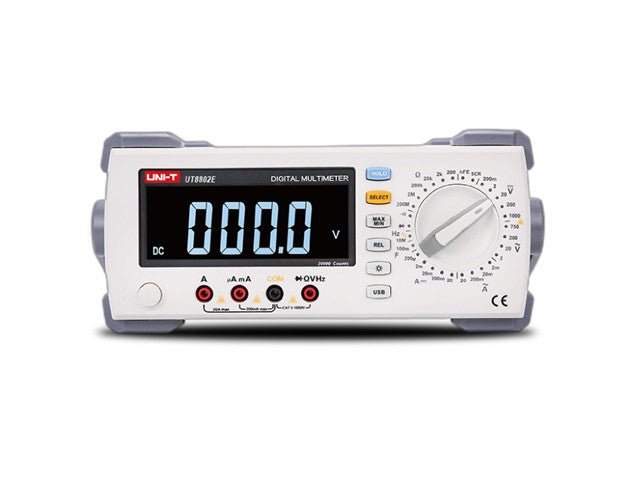

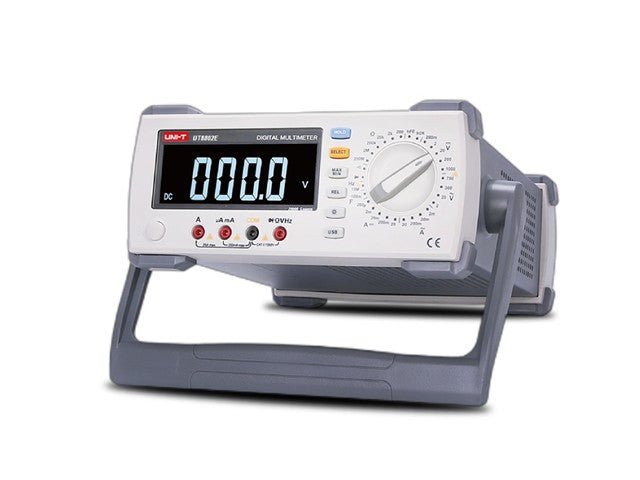

The UT8802E is a manual range，benchtop digital multimeter that features 19999 display counts，large Screen with back light, full scale over load protection and a unique design. This instrument can be used to Measure AC and DC voltage, AC and DC current, resistance, frequency, capacitance, transistor, hFE, diode (LED), SCR, continuity, etc.
Specifications
- DC voltage (V) : 200mV/2V/20V/200V/1000V
- AC voltage (V) : 2V/20V/200V/750V
- DC current (A) : 200μA/2mA/20mA/200mA/20A
- AC current (A) : 2mA/20mA/200mA/20A
- Resistance (Ω) : 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/200MΩ
- Capacitance (F) : 20nF/200nF/2μF/20μF/200μF/2mF/20mF/100mF
- Frequency (Hz) : 200Hz~10MHz
- Duty cycle (%) : 5%~99%
- Display count : 20000
- Interface : USB Device
- Range : Manual
- True RMS/diode : Yes
- Frequency response (Hz) : 1kHz
- SCR test : 9V, can measure unidirectional and bidirectional SCR (UT8803E)
- Continuity buzzer/data hold : Yes
- MAX/MIN : Yes
- USB interface/LCD backlight : Yes
- AC+DC measurement : Yes
Downloads
Additional Information
| Device | Multimter |
| Type | Digital | True |
