Product Details
TP-LINK Tapo Smart Home Base HUB, Up To 16 Cameras & 64 Sensors, Built-In Storage:16GB eMMC, Storage:1BAY 2.5" SATA HDD/SSD up to 16TB, Supports Tapo & Matter Certified Devices, 1x10/100Mbps, USB-C O/P 5V1.5A, USB-A O/P 5V0.5A, HDMI, Siren:110dB
Tapo Smart Home Base HUB
Features
- Expansive Local Storage, No Monthly Fees: Built-in 16GB local storage, expandable up to 16TB HDD for recording video clips for years. Skip the expense of individual SD cards and cloud subscriptions.

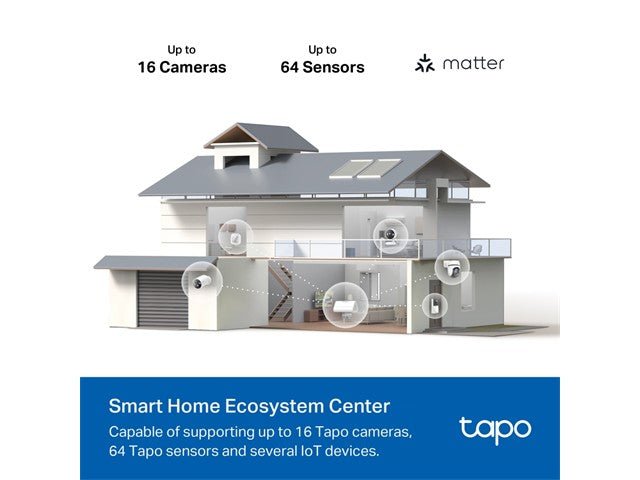

- Unified Smart Home Management: Unify the connection and management of your home's cameras on a single device. Tapo H500 can connect and manage up to 16 Tapo cameras and 64 Tapo Sub-G sensors.
- Adds Facial Recognition to Existing Tapo Cameras: Smart AI recognizes and labels faces, alarming only for specific groups such as strangers to reduce false alerts and simplify finding events.
- Flexible Viewing: From Mobile to Monitor: Watch live view and playback on your phone or tablet or monitor up to 4 live views on larger screens with the built-in HDMI port.
- Data Protection You Can Trust: Encrypted Against Theft: Armed with exclusive encryption algorithms, H500 provides premium data protection against unauthorized access.
- Quick View, Easy Find: Your Security at a Glance: Quickly see an overview of all connected device activity in one app. Review daily security reports and find specific events using tags.
- Built-In Alarm & Chime: 110dB alarm not only alerts you to detected intruders but can also conveniently act as a chime when connected to Tapo smart doorbells.
- Click here to view Tapo H500 Compatibility List and Adaptation Plan
Specifications
| Local Storage | Built-in Storage: 16GB eMMC Expanded Storage: 1-Bay, 2.5" SATA HDD/SSD, up to 16TB(needs to purchased seperately) |
|---|---|
| Frequency | 5 GHz Wi-Fi (For Router) 2.4 GHz Wi-Fi (For Cameras) Sub-1 GHz：863.35MHz, 864.35MHz, 868.35MHz (for EU/UK) 920.9MHz, 921.7MHz, 922.3MHz (for US/AU). |
|---|---|
| Security | 128-bit AES Encryption with SSL/TLS |
|---|---|

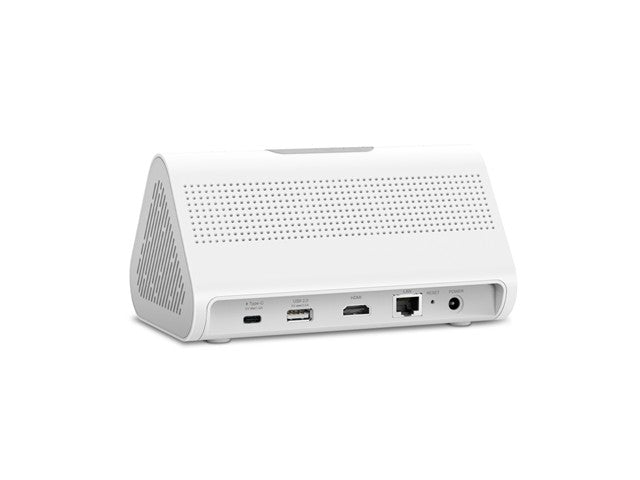

| Interface | 1x HDMl Port, 1x DC Power Port |
|---|---|
| Adapter Input | 100-240V, 50/60Hz |
| Adapter Output | 12V, 2A |
| Ethernet Ports | 1* 10/100 Mbp（For WAN) |
| USB Support | USB Ports: 1x USB-A for data transfer, 1x USB-C for charging |
| Buttons | 1* Reset Button, 1* Answer/SYNC Button, 1* Decline/Mute Button, 1* Volume Up Button, 1* Volume Down Button |
| Dimensions (W x D x H) | 6.31 x 3.89 x 3.28 in. (160.20*98.82*83.21)mm |
| Operating Humidity | 10%~90%RH, Non-condensing |
|---|---|
| Storage Humidity | 5%~90%RH, Non-condensing |
| Package Content | Tapo H500 Power Adapter Screws Quick Start Guide Ethernet Cable |
|---|---|
| Operating Temperature | 0℃– 40℃ (32°F–104°F ) |
|---|---|
| Storage Temperature | -20℃~60℃ (-4°F~140°F) |
| Certification | CE, RoHS, RCM |
|---|---|
Downloads
Additional Information
| Device | Base HUB |
| Type | Tapo | Smart Home |
