Product Details

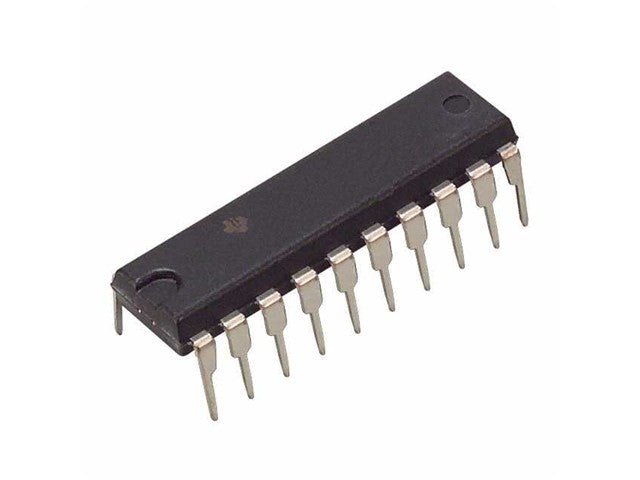

DAC CMOS 8-BIT+5V-15V 20PD(AD7528)
Specifications
|
Number of Bits
|
8
|
|
Number of D/A Converters
|
2
|
|
Settling Time
|
100ns
|
|
Output Type
|
Current - Unbuffered
|
|
Differential Output
|
No
|
|
Data Interface
|
Parallel
|
|
Reference Type
|
External
|
|
Voltage - Supply, Analog
|
5V ~ 15V
|
|
Voltage - Supply, Digital
|
5V ~ 15V
|
|
INL/DNL (LSB)
|
±0.5 (Max), ±0.5 (Max)
|
|
Architecture
|
R-2R
|
|
Operating Temperature
|
0°C ~ 70°C
|
|
Package / Case
|
20-DIP (0.300", 7.62mm)
|
|
Supplier Device Package
|
20-PDIP
|
|
Mounting Type
|
Through Hole
|
Downloads
Additional Information
| Device | IC |
