Product Details

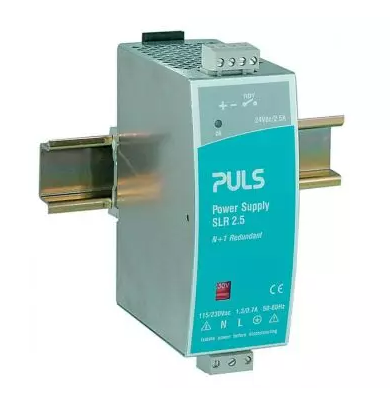

DIN Rail Metal Case Switch Mode Power Supply with Redundancy Input: 176 ~ 264 VAC - Output 24DC @ 2,5A (SLR2.100) (DIN Rail Metal 24V - 2,5A)
DIN Rail Metal Case Switch Mode Power Supply
Specifications
- AC Input voltage : AC 100 - 120 / 210 - 240V
- Nominal voltage : 24Vdc
- Adjustment range : 24V
- Output current range : 2.5A
- Output current : 2.5A at 24V
- Output power : 60W
- Derating : 1.5W/°C for >+60°C
- Ripple and noise voltage max. : 30mVpp
- Dimensions (WxHxD) : 49mm x 124mm x 102mm
- Weight per unit (excl. packaging): 470g
- Mounting method : DIN rail
- Connection method : Plug connector
- Efficiency, typ. : 86.5%
- Power losses, typ. : 9.4W
- MTBF SN 29500 @ 40°C (h) : 700000h
Downloads
Additional Information
| Device | Power Supply |
| Type | DIN Rail | Metal Case | Switch Mode |
