Product Details

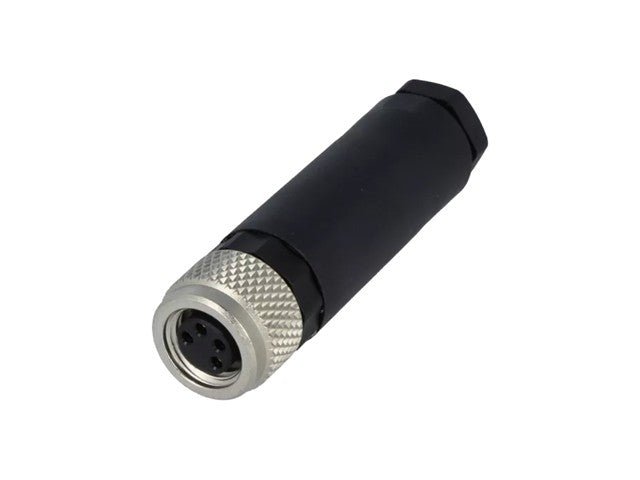

Circular Connector M8 Cable Female Straight 3 Pole Screw Terminal 5,5mm Max. Cable Entry
Circular Connector M8 Cable
Specifications
- Type of connector: M8
- Kind of connector: Female
- Number of pins: 4
- Current rating: 4A
- Rated voltage: 30V
- IP rating: IP67
- Manufacturer series: 768
- Spatial orientation: Straight
- Connector variant: Unshielded
- Mechanical mounting: For cable
- Connector: Plug
- Locking system: Internal thread, threaded joint
- Electrical mounting: Screw terminal
- Wire cross-section: 0.14...0.5mm2
- Cable external diameter: 3.5...5mm
- Body material: PBT
- Wire size: 26AWG...20AWG
- Contact plating: Gold-plated
- Contact material: Bronze
Additional Information
| Device | M8 Cable |
| Type | Circular | Connector | M8 | Cable |
