Product Details

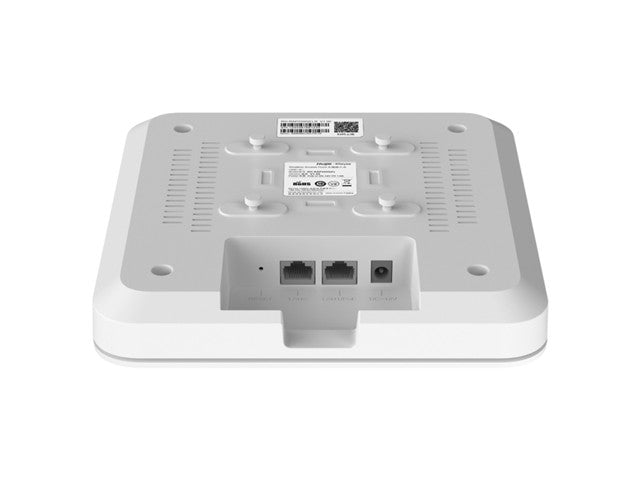

Reyee Wireless Ceiling Mount WiFi Access Point Dual Band 2.4GHz 12.95W 802.11ac Wave2, 1267Mbps, PSU:12V1.5A (Not Included), Supports: WPA (TKIP), WPA2 (AES) & WPA-PSK, 2.4 GHz:2x2MIMO, 5GHz:2x2MIMO, 2x10/100/1000Mbps, 194x194m×35mm, 0.45Kg
Wireless Ceiling Mount WiFi Access Point
Features
- Self-organizing network
- Centralized network management
- Scenario based configuration
- Cloud portal authentication
- Remote monitoring and maintenance
Specifications
Hardware Specifications
Wi-Fi Radio
Radio design
- Dual-radio
4 spatial streams
● 2.4 GHz: 2 x 2, MIMO
● 5 GHz: 2 x 2, MIMO
Maximum wireless data rate
- 1266 Mbps
6 GHz wireless data rate
- No
5 GHz wireless data rate
- 866 Mbps
2.4 GHz wireless data rate
- 400 Mbps
Antenna
Antenna
- 2.4 GHz: 2 built-in omnidirectional antennas
5 GHz: 2 built-in omnidirectional antennas
Dimensions and Weight
Product dimensions (W x D x H)
- 194 mm x 194 mm x 35 mm (7.64 in. x 7.64 in. x 1.38 in.) (excluding the mounting bracket)
Color
- White
Weight
- ≤ 0.45 kg (0.99 lbs.) (without packaging materials)
Port Specifications
Number of 10/100/1000BASE-T ports
- 2
Power Supply and Consumption
Power supply
- ● DC power adapter
● PoE/PoE+
Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
Local power supply
- Yes, one DC power connector (12 V, 1.5 A)
Dimensions of the DC connector
- Outer diameter: 5.5 mm (0.22 in.)
Inner diameter: 2.1 mm (0.08 in.)
Depth: 10 mm (0.39 in.)
PoE budget
- No
Maximum power consumption
- 12.95 W
Environment and Reliability
Operating temperature
- 0°C to 40°C (32°F to 104°F)
Mounting options
- Ceiling/Wall
IP rating
- No
Software Specifications
WLAN
Maximum number of associated wireless clients
- 64 (2.4 GHz)
110 (5 GHz)
110 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed
- 300
Downloads
Additional Information
| Device | Access Point |
| Type | Wireless | Ceiling Mount | WiFi |
