Wide range applications

Measures all light produced by all visible colors of LED, fluorescent lamp, metal-halide lamp, high voltage sodium lamp or electric incandescent lamp. Measuring range is up to : 0.00~200000 Lux / 0∼20000 FC

High quality measurement

Built-in high precision photo diode sensor and color correction filter for indoor use

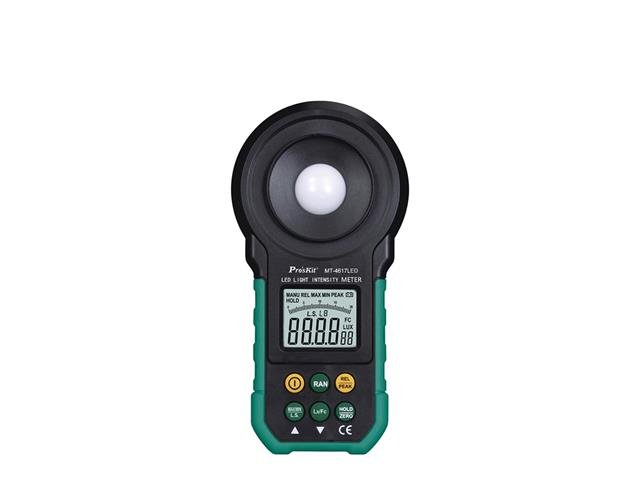

Dual-scale meter

Both digits and analog bargraph display

Auto and manual range

Relative and peak value measurement

User friendly functions

Max./Min. value display, low battery indication、LUX/FC unit, auto power off、data hold, zero calibration

• Range
• 20、200、2000、20000、200000 Lux
v
• 20、200、2000、20000 FC
• Ring spectral range : 320∼730nm
• Accuracy
• ±3% (calibrated to standard incandescent lamp and LED at 2,854K)
• ±6% (calibrated at other visible light source)

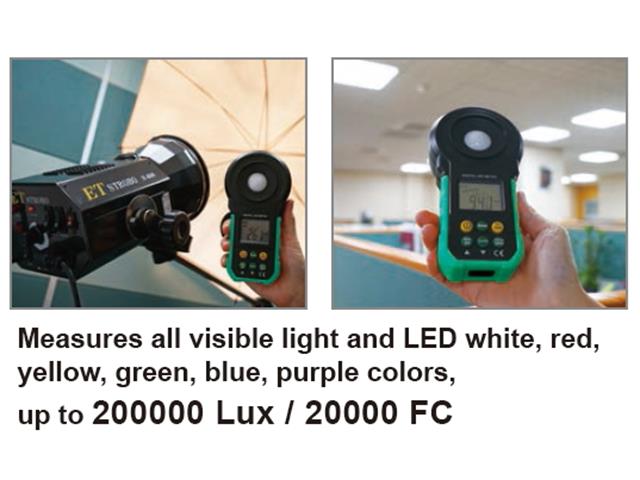

• Applications : For all visible light and LED white, red, yellow, green, blue, purple color
• Unit selection : Lux.FC (Footcandles)
• Sensor : Silicon photodiode
• Sampling time : ≥2 times/sec.
• Auto power off : 10 min after no use
• Operation sound : Selection
• Low battery indicate : <7V
• Operation environment : 0~85%RH，-10∼50°C(no condense)
• Storage environment : 0~70%RH，-10∼50°C(no condense)
• Operating altitude : Max. 2000m
• Power source : 9V (not included)
• Weight : 154 g (not including battery)
• Dimension : 170x85x45mm

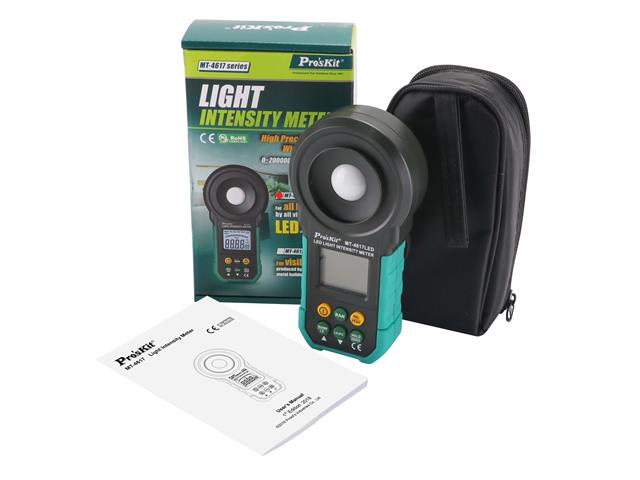

• Accessory : Storage bag,instruction manual

1. User Manual - PRK MT-4617LED
