Product Details

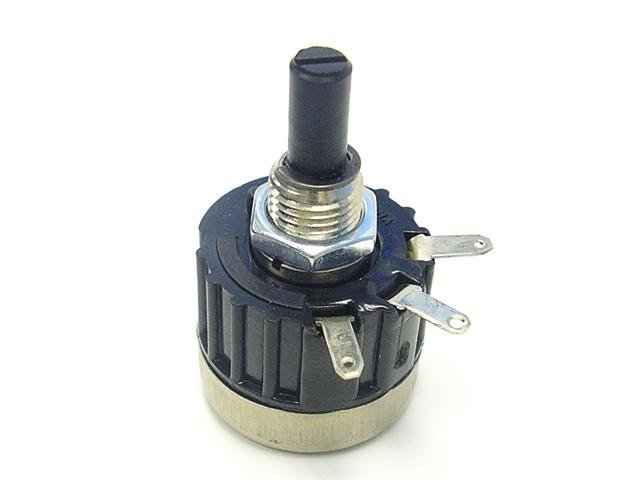

Single turn Wire Wound Rotary Control Potentiometer, Size 25mm dia • Sol Lug • 3W • 1kΩ • ±10% • 1 Turn 280°
Downloads
Additional Information
| Device | Wire Wound Rotary Control |
| Type | Single turn |
| Size | 25mm dia |
| Termination | Solder Lug |
| Power Rating | 3W |
| Resistance Value | 1kΩ |
| Tolerance | ±10% |
| Tolerance Code | K |
| Element Type | Wirewound |
| No. of Turns | 1 Turn 280° |
| Mounting Style | Panel Mount |
| Shaft Diameter | 6mm |
| Shaft Type | Glasfiber |
| Shaft Length | 12mm |
