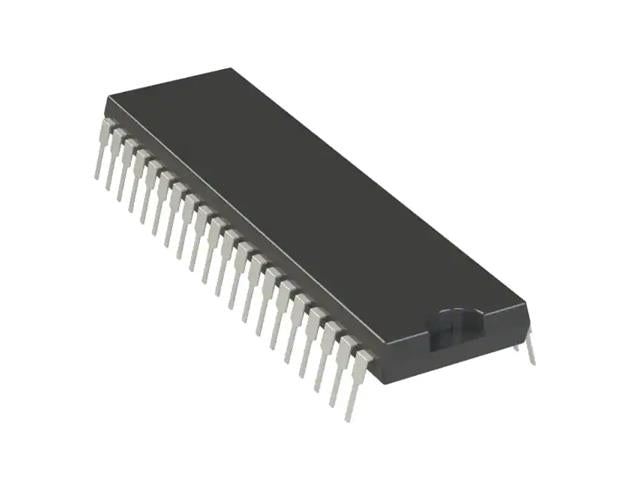

16F Microcontroller IC 8-Bit 20MHz 14KB
Specifications
| Series |
PIC® 16F |
| Core Processor |
PIC |
| Core Size |
8-Bit |
| Speed |
20 MHz |
| Program Memory Type |
FLASH |
| Program Memory Size |
14 KB (8K × 14) |
| EEPROM Size |
256 × 8 |
| RAM Size |
352 × 8 |
| Number of I/O |
35 |
| Data Converters |
A/D 8 × 10-bit |
| Connectivity |
I2C, SPI, UART/USART |
| Oscillator Type |
Internal |
| Peripherals |
Brown-out Detect/Reset, LCD, POR, PWM, WDT |
| Voltage - Supply (Vcc/Vdd) |
2 V ~ 5.5 V |
| Operating Temperature |
-40°C ~ 85°C (TA) |
| Mounting Type |
Through Hole |
| Supplier Device Package |
40-PDIP |
| Package / Case |
40-DIP (0.600", 15.24 mm) |
