Visual Fiber Fault Locator 10MW, Locates Fiber Breakage and Winding... Batteries Not Included

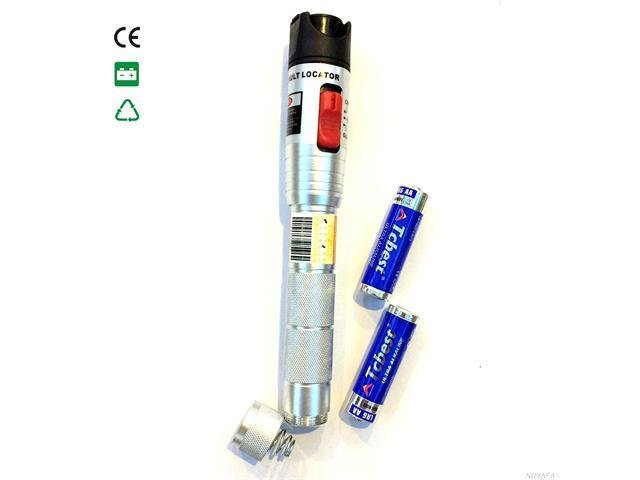

Visual Fiber Fault Locator 10MW
Overview
NF-904 Visual Fault Locator uses the DFB-LD as the emitting component . Driven by constrant current source , the indicator can emit stable red laser . The product can be used to inspect fiber failure when they connect with optical interface and be inserted into single mode or multi mode optical fiber . It is indispensable tool in fiber project constructing , fiber net-work maintaining , optical component manufacture and research .
Features
- Find the breakage and winding of fiber optical cable .
- Examine the fault in OTDR dead zone .
- End to end fiber recognition ,
- The optimization of the machine connection point
- BATTERIES NOT INCLUDED
Specifications
- Output Power : 10mW
- Color : White Option
- Output Wavelength : 650nm ±10nm
- Connector : 2.5mm Universal Connector
- Working Temperature : -20 ~+60 °C
- Storage Temperature : -40~+70 °C
- Power Supply : 2 AA Battery
- Body Color : Optional choice for Black & White
- Continuous Working : ≥ 20H
Additional Information
| Device | Fault Locator |
| Type | Visual Fiber | 10MW |
