Product Details

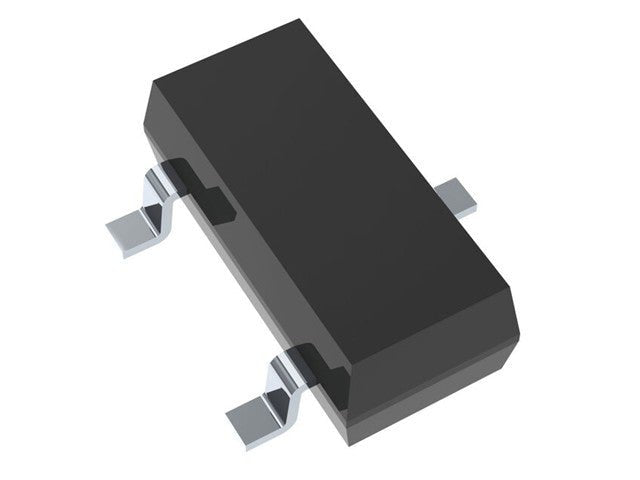

P 40V 40V 200MA 100MN SOT23 (SMD)
P 40V 40V 200MA 100MN SOT23 (SMD)
Specifications
- Type Designator: MMBT3906
- SMD Transistor Code: 2A_3N_7Bp_7Bt_7BW_K3N
- Material of Transistor: Si
- Polarity: PNP
- Maximum Collector Power Dissipation (Pc): 0.2 W
- Maximum Collector-Base Voltage |Vcb|: 40 V
- Maximum Collector-Emitter Voltage |Vce|: 40 V
- Maximum Emitter-Base Voltage |Veb|: 5 V
- Maximum Collector Current |Ic max|: 0.2 A
- Operating Junction Temperature (Tj): 135 °C
- Transition Frequency (ft): 250 MHz
- Collector Capacitance (Cc): 4.5 pF
- Forward Current Transfer Ratio (hFE), MIN: 100
- Noise Figure, dB: -
- Package: SOT23
Additional Information
| Device | Transistor |
| Type | 40V 40V 200MA 100MN SOT23 (SMD) |
