Product Details

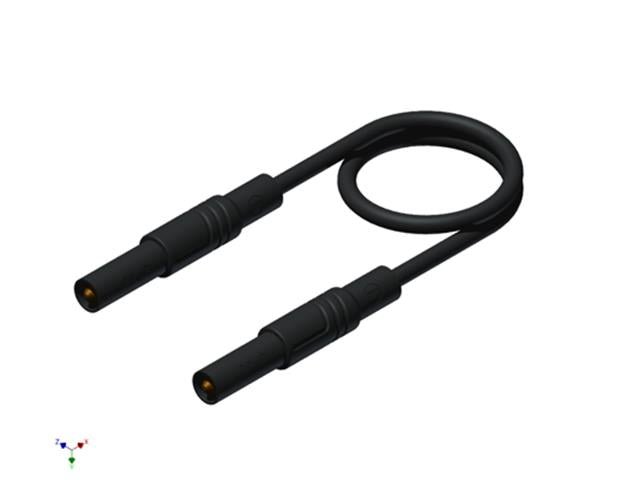

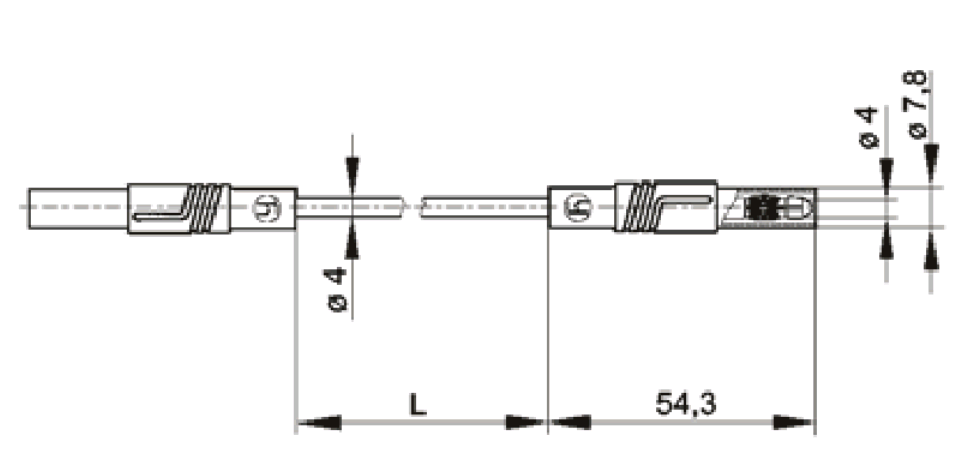

4mm PVC Safety Test Lead 2.5mm Striaght Shrd Plug to Straight. Shrd Plug Square. 4mm PVC Safety Test Lead Overview Touch-proof measuring cable according to IEC 61010, both sides safety plug with 4mm diameter and straight outlet. Contact spring copper beryllium nickel-plated. Highly flexible, double insulated stranded wire, grip sleeve and cable are resistant to treading. Built-in color indicator to detect damage to the insulation. Specifications Rated Voltage (1) : AC / DC 1000V Measurement Category According to IEC61010 : CAT III Rated current (1) (observe derating curve) : 32 A Material-pin : Nickel-Plated Brass Housing Material : PA Temperature Range According to IEC61010 (2) : -15°C to +70°C Flammability Class According to UL 94 (only Applies to Housing Base Material) : V-2 Cable Length : 100 cm Wire Gauge : 2.5 mm² Cable Material : PVC Contact Resistance : 12 mOhm Standard : IEC 61010 Additional Information Device Test Lead Type PVC | Safety
