Product Details
Solar LED Street Light
Overview

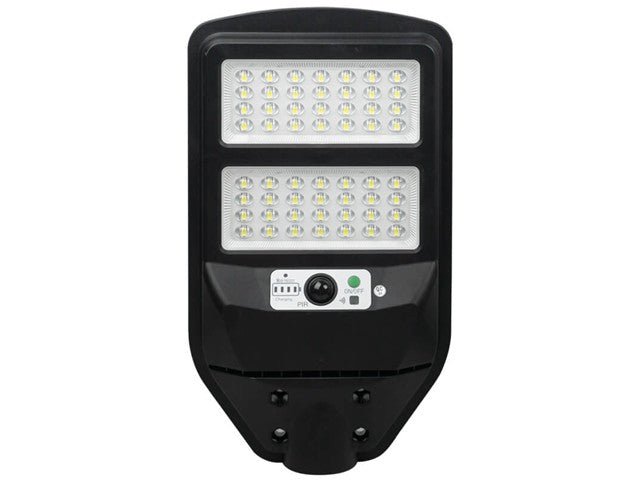

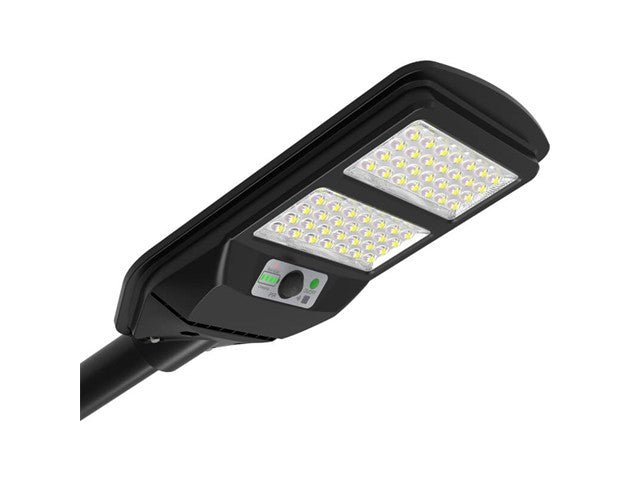

The SSL80C Integrated Solar Street Light offers convenient, reliable and efficient lighting with a high lumen output of 1400 lumen. Its 6500K colour temperature ensures brilliant, bright, clear illumination. Designed with a durable, UV and weather-resistant ABS housing (IPX4), this Solar Street Light is perfect for outdoor use on pathways, parking areas, and residential streets.

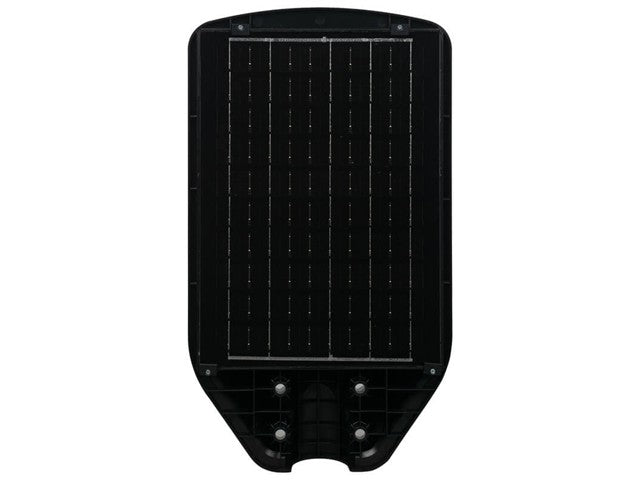

During the day, the integrated 10W/5V solar panel charges the 3.2V 10000mAh LiFePO4 battery. When night/low-light conditions are detected, the built-in PIR sensor activates the light when motion is detected within a 120° angle at up to 8 metres. This Street Light provides up to 14 hours of illumination after a full 6 hour charge in optimal sunlight. The SSL80C features multiple remote controllable lighting modes, including Time Control, Day/Night Auto, Motion-activated settings and more, ensuring energy-efficient operation tailored to your needs. Its robust design, reliable performance and convenient lighting mode settings make this Solar Street Light an excellent choice for cost-effective, eco-friendly outdoor lighting.
Feature(s)
- 1400 Lumens
- 10W
- 8m PIR sensor
- Lighting modes: Day/Night, Continuous on/off, Pre-set times and Motion Activation
- IPX4 Rating
- 6500K - Cool White
- 120° beam angle
- 12 to 14 hours discharge time
- Remote control for convenient control at a distance
- Included pole mount bracket for easy installation
- Battery charging level & lighting mode indicator shows current status of the light
- Integrated glass & monocrystalline silicone solar panel
Specifications
|
Function |
Range |
|
Lumens |
1400lm |
|
Actual Power |
10W |
|
Equivalent Power |
100W |
|
Lumen/Watt |
140lm/W |
|
LED Type |
SMD5054 |
|
Detection Distance |
Max 8m @ 25°C Ambient Temperature |
|
Colour Temperature |
6500K Cool White |
|
Detection Angle |
120° |
|
Discharge Time |
12 - 14 Hours (Typical) |
|
Day/Night Detection |
Day >10 Lux / Night <5-10 Lux |
|
Charging Time |
4 - 6 Hours @ 40 000 Lux (Normal Daylight) |
|
Number of Charging Cycles |
>1200 Cycles |
|
Battery Type |
LiFePO4 |
|
Battery Specification |
3.2V 10000mAh |
|
Solar Panel |
10W/5V |
|
Light Modes |
Day/Night Auto, Continuous On/Off, Pre-set Times, Motion Activation (PIR) |
|
Operating Temperature |
-10°C(Discharge), 5°C(Charge) up to 40°C |
|
Operating Humidity |
<95% RH |
|
IP Rating |
IPX4 |
|
Remote Control Batteries |
2 x AAA 1.5V Batteries Included |
|
Installation Height |
3 - 6m (Pole Mounted) |
|
Material Lamp Solar Panel |
ABS (UV Proof) Monocrystalline Silicon + Glass |
|
Dimensions Lamp Solar Panel |
413 x 231 x 47mm 299 x 211 x 4mm |
|
Weight |
1.20kg |
Accessories:
- Remote Control
- 2x AAA Batteries
- Pole Mount Bracket
- Nuts & Bolts
- Instruction Manuals
Downloads
Additional Information
| Device | Street Light |
| Type | Solar | LED |
