Product Details

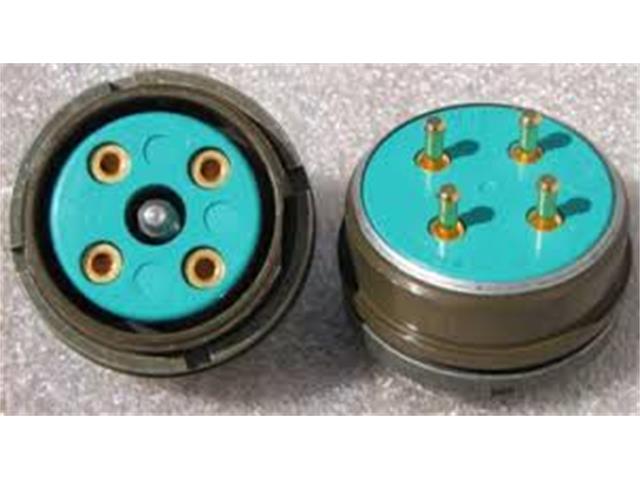

Circular Connector Audio Power MW20F(M)A11 Panel Female Receptacle Jam Nut 4 Pol Female - Centre Screw Lock - Male Thread MIL-C-55181 (NSN 5935011997156)
Circular Connector Audio Power
Specifications
- Sealing : Meets IP67
- Connector Type : Circular
- Connector Style : Receptacle
- Mounting Type : Panel
- Contacts, # of : 4
- Contact Style : Socket
- Termination Method : Solder
- Contact Size : 4#12
- Contact Material : Brass or Copper Alloy
- Contact Plating : Gold over Nickel
- Shell Material : Brass
- Shell Plati : Olive Drab
- Insert Material : Diallyl Phthalate
- Amperage Rating : 35A
- Operating Voltage AC V RMS Max : 2000V
- Operating Temperature °F (°C) : -67 to +185 (-55 to +85)
- Contact Mating Life : 500
- Orientation : Straight
Additional Information
| Device | Connector |
| Type | Circular | Audio | Power |
