Product Details

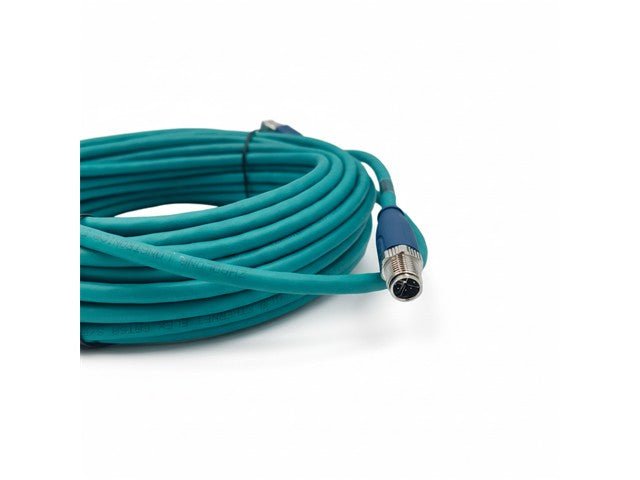

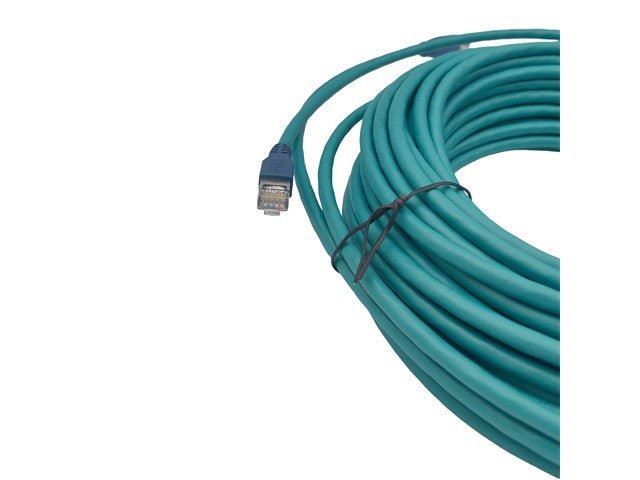

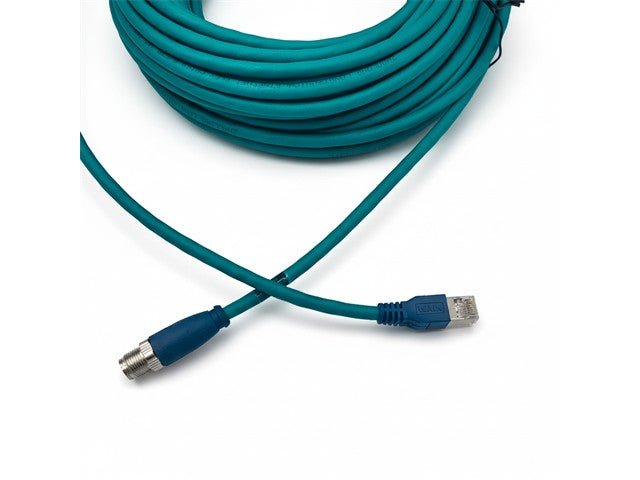

Cordset M12 X Code Male 8 Pole - RJ45 10M PUR CAT6a
Cordset M12 X Code Male 8 Pole
Specifications
- nsulation materials: PE
- Series: M12
- Male/female: Male connector
- Encoding type: X coding
- Number of connector contacts: 8
- Cable outlet: Straight
- Shield: Yes
- Rated current: 0.5A
- Rated voltage: 50V AC, 60V DC
- Rated pulse voltage: 0.8KV
- Contact resistance: ≤10mΩ
- Wire gauge (mm²): 0.14mm²
- Wire gauge (AWG): 26 AWG
- Insulation material group: Ⅱ
- Overvoltage protection level: Category III
- Housing material: TPE
- Seals: Fluororubber
- Contact material: Copper alloy
- Contact electroplating material: Gold-plated
- Locking method: Thread M12×1
- Connection method: PUR Cat.6a
- Mating cycles: ≥500
- Working temperature: -25℃...+85℃
- Salt spray level: 72h
- Protection rating: IP67
- Flame retardant rating as per UL94: V0
- Class of pollution: 3
- Altitude: 2000m
- Sheath material: PUR
- Cable type: Cat.6a
- Sheath color: Blue
- Cable length: 5m
- Woven material: Copper, tin-plated
- Insulation materials: PA
- Conductor material: Copper
- Wire gauge (mm): 7/0.16
- Cable flame classifications: VW-1
Downloads
Additional Information
| Device | RJ45 10M PUR CAT6a |
| Type | Cordset | M12 X Code | Male | 8 | Pole |
