Product Details

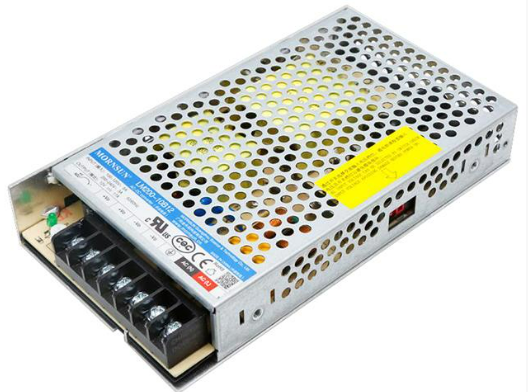

Metal Case Small Outline Switch Mode Power Supply Input: 180 ~ 264VAC (Switch)/240 - 370VDC. Output 5VDC @ 30A. Terminal Block Term.
Small Outline Switch Mode Power Supply
Feature
- Selectable AC input range: 90 - 132VAC/180 - 264VAC
- DC input range: 240 - 370VDC(Switch in position of 230)
- Ultra low standby power consumption < 0.75W
@230VAC - Operating ambient temperature range: - 30℃ to +70℃
- High efficiency, high reliability
- LED indicator for power on
- Output short circuit, over-current, over-voltage,
over-temperature protection - Operating altitude up to 5000m
- Safety according to EN60335, EN61558
Downloads
Additional Information
| Device | Power Supply |
| Type | Small Outline | Switch Mode |
| Input Voltage | 180 ~ 264VAC (Switch)/240 - 370VDC |
| Output | 5VDC @ 30A |
| Size | 179.00 x 99.00 x 30.00mm |
