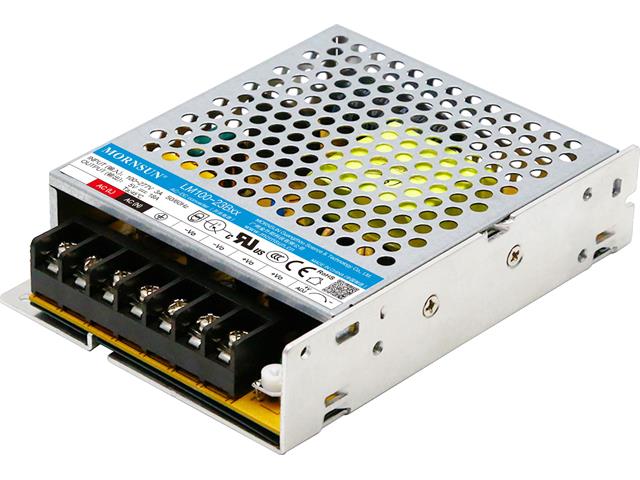

Metal Case Small Outline Switch Mode Power Supply Input: 85 ~ 305VAC/120 - 430VDC. Output 24VDC @ 4,5A. Terminal Block Term. 4KVAC Isolation (LRS-100-24)
SMALL OUTLINE SWITCH MODE POWER SUPPLY
OVERVIEW
LM100-23Bxx series is one of Mornsun’s enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943, EN61558 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.
FEATURE
- Universal 85 - 305VAC or 120 - 430VDCinput voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃to+70℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- OVC Ⅲ (designed to meet EN61558)
- Operating up to 5000m altitude
| Device |
Power Supply |
| Type |
Small Outline | Switch Mode |
| Input Voltage |
85 ~ 305VAC/120 - 430VDC |
| Output |
24VDC @ 4,5A |
| Size |
129.00 x 97.00 x 30.00mm |
